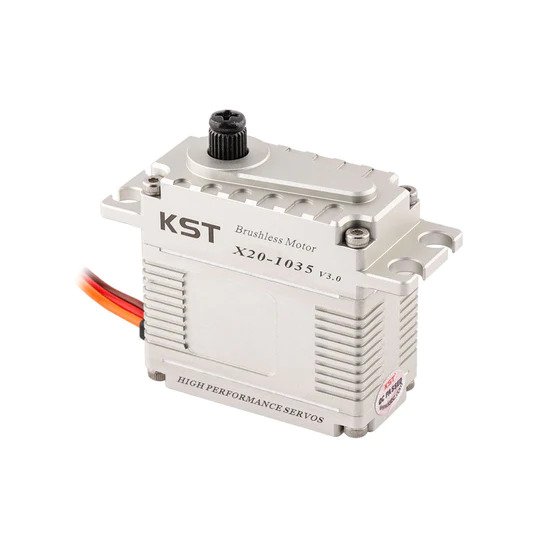

KST X20-1035 V3 TAIL SERVO

The X20-1035 Servos feature brushless motors, full CNC aluminum cases,

and a complete set of hardened steel High Life Span (HLS) gears throughout each servo.

It offers 1.2N.m of torque at a blistering fast 0.03 second speed at 8.4V.

We also provide the new X20 Combo set, including three X20-2208 V8.0 Cyclic Servos and one X20-1035 V3.0 Tail Servo.

Features

• Brushless DC motor

• Extreme torque and Excellent speed

• Hardened steel gears

• 6 Ball bearings

• Ideal for 500 to 800 Class EP/GP Helicopters

Specification

• Item: X20-1035 Brushless Tail Servo

• Rated Voltage: DC7.4V

• Voltage Range: DC6.0V-8.4V

• Torque: [email protected] [email protected] [email protected]

• Speed: 0.040sec/60°@6.0V 0.035sec/60°@7.4V 0.030sec/60°@8.4V

• Working Frequency: 760us/560Hz

• Temperature Range: -10℃……+65℃

• Case Material: Aluminum Alloy

• Motor Type: Brushless DC Motor

• Gear Set Material: Hardened Steel (HLS)

• Position Sensor: Potentiometer

• Case Dimensions: 40mm*20mm*40mm±0.2mm

• Weight: 72g±10%
