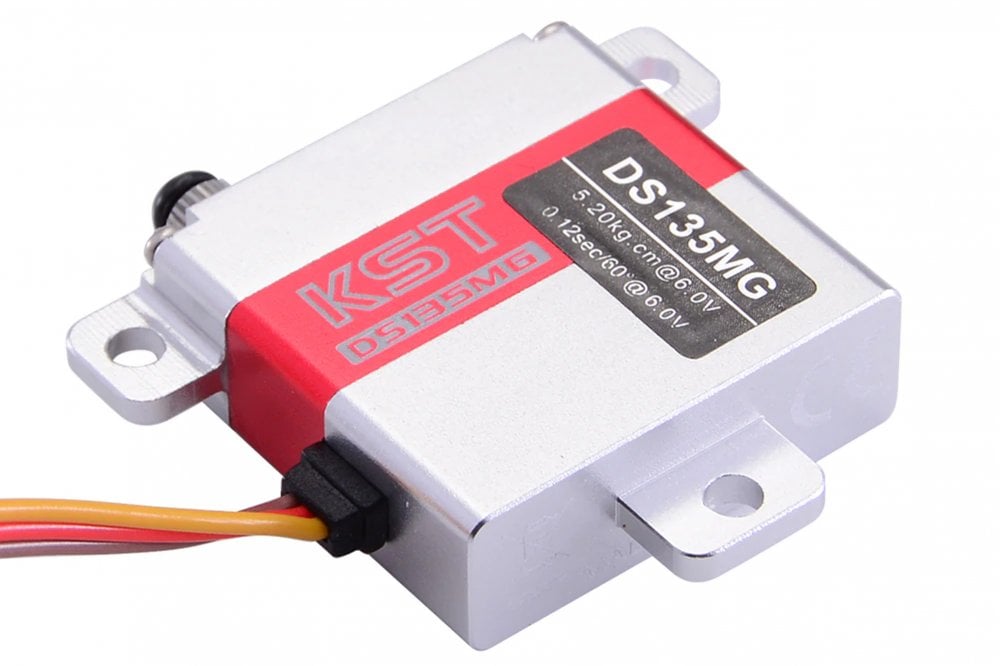

KST DS135MG WING SERVO

The KST DS135MG Wing Servo is an amazingly good metal cased wing servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for less than half the price. Like the more expensive servo, it has no geartrain slop.

At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.2Kgf.cm torque the KST DS135MG is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.

Features

• Extreme torque and Excellent speed
• CNC aluminium case
• Two Ball Bearings
• Programmable

Specification

• Iteam: DS135MG Digital Metal Servo
• Operating Voltage: DC4.8V-6.0V

• Rated Voltage: DC4.8V
• Size: 30*10*30mm

• Torque: [email protected] / [email protected]

• Speed: 0.12sec/60°@6.0V / 0.15sec/60°@4.8V

• Default Travel Angle: ±50° = 100° Total
• Operating Temperature Range：-10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 30mm*10mm*29.6mm±0.2mm
• Weight: 23g±10%
• Recommend Servos: DS125MG Servo, DS135MG Servo, DS145MG Servo

Size
