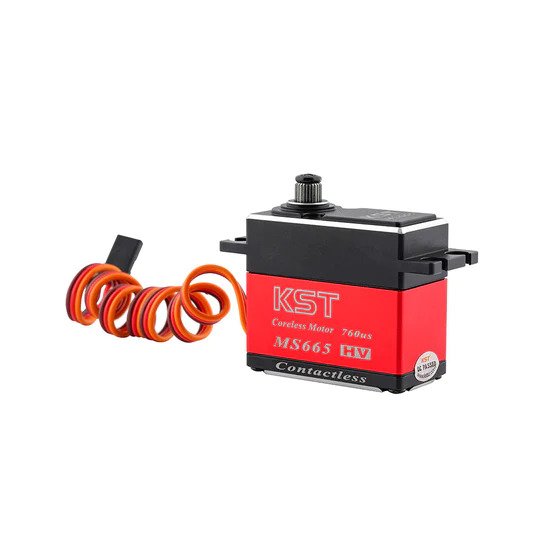

KST MS665 SERVO

MS665 digital servo has a wear-free magnetic positioning system,

a precise and backlash-free solid metal gear and an accurate setting back to initial position.

It is perfectly suitable for 550-600-class helicopters.

Features

• Metal Gears

• Extreme Torque and Excellent Speed

• CNC Aluminium Case

• Two Ball Bearings

Specification

• Item: MS665 Coreless Servo

• Operation Voltage: DC6.0V- 8.4V

• Torque: 5.8Kg.cm @ 6.0V
  6.8Kg.cm @ 7.4V
  7.5Kg.cm @ 8.4V

• Speed: 0.05sec/60° @ 6.0V
  0.045sec/60° @ 7.4V
  0.04sec/60° @ 8.4V

• Size: 40.5*20*38mm

• Working Frequence: 760us/560Hz

• Weight: 69g

• Motor: Coreless

• Position sensor: Contactless

• Ball Bearing: 2BB

Package Including

• 1 * MS665 Coreless HV Servo

• 1 * Accessories
