JETI RB3100 POWER ION 3100MAH LI-ION MED HOLDER

JETImodel Receiver Battery Power Ion 3100 2S1P

Power-Ion accumulators are battery packs suitable to power the receiv-er

and servos in the model.

The main advantages of Power-Ion accumulators include high mechanical

resistance due to keeping  in a metal case. The accumulators are also

characterized by a long cycle life. No balancer is needed for their

operation and in case the current is higher than 150A, short circuit

protection is activated. Overcharge protection is activated if the

charging voltage is higher than 5V per cell.

The accumulators are functional even at very low or very high temperatures (-10 – +60°C).

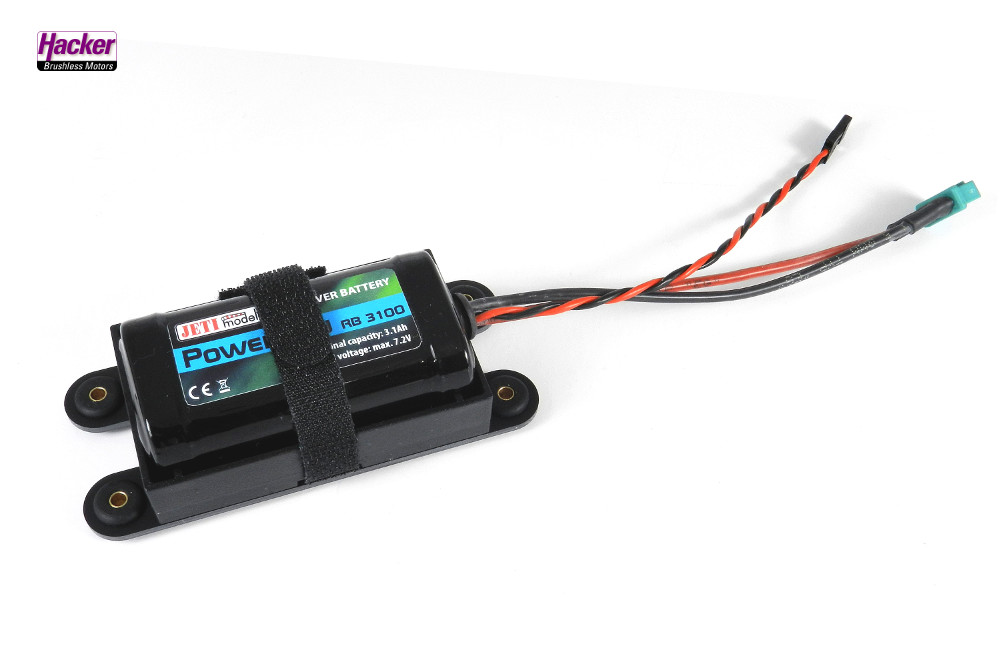

Each pack is provided with one two-wire cable with the JR connector for

charging and with one two-wire cable with the MPX connector for connection

to the model. Both cables are of the same length.

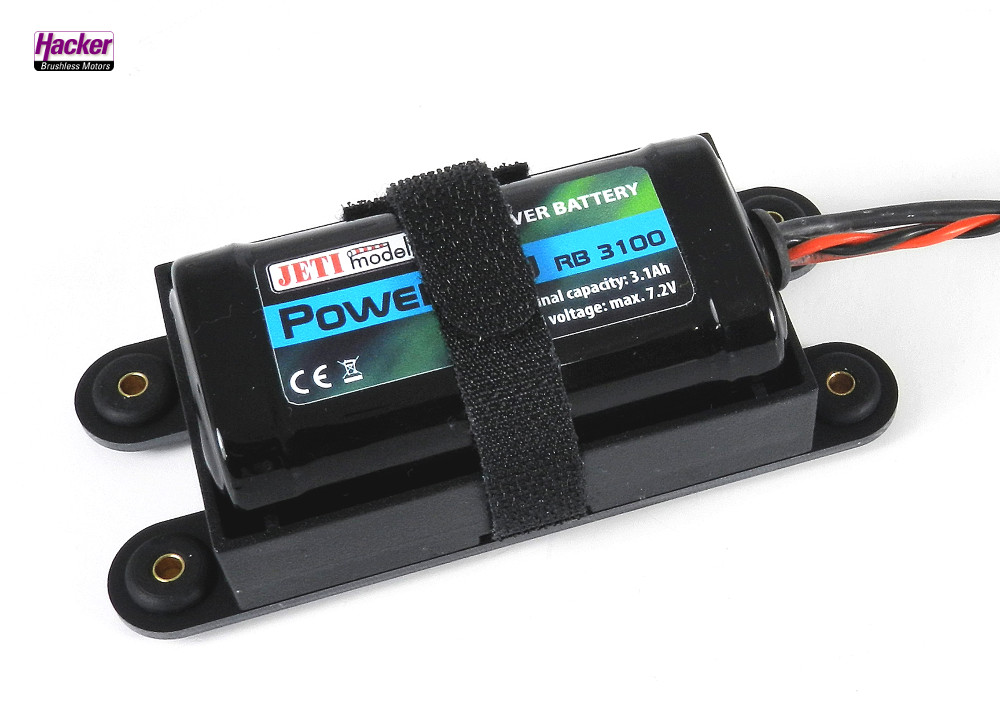

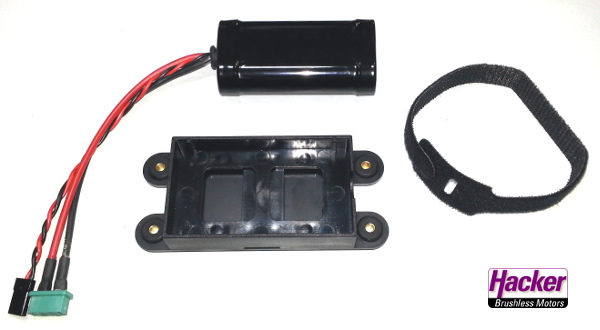

The accumulators are supplied in a plastic case and are fastened to it by

Velcro. The case itself is screwed to a model using anti-vibration rubber

grommets, see the picture below. Pay attention to correct placing of the

brass washer. Its wider part should be in contact with the assembly board

to which the battery case is mounted to avoid extruding the material.

technical data:
