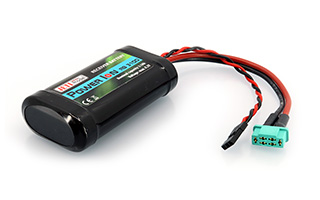

JETI RB3100 3100MAH LI-ION UTEN HOLDER

JETImodel Receiver Battery Power Ion 3100 Trayless

Product description and features

Power-Ion accumulators are battery packs suitable to power the receiv-er and servos in the model. The main advantages of Power-Ion accumulators include high mechanical resistance due to keeping in a metal case. The accumulators are also characterized by a long cycle life. No balancer is needed for their operation and in case the current is higher than 150A, short circuit protection is activated. Overcharge protection is activated if the charging voltage is higher than 5V per cell.

The accumulators are functional even at very low or very high temperatures (-10 – +60°C). Each pack is provided with one two-wire cable with the JR connector for charging and with one two-wire cable with the MPX connector for connection to the model. Both cables are of the same length.

Technical data

• Nominal capacity: 3100mAh

• Nominal voltage: 7,2V

• Final charge voltage: 8,4V

• Cable length (1x MPX cable + 1x JR cable): 135mm each

• Weight: 136g

• Dimensions: 104x47x32mm

• Continuous current max.:20A

• Short-term current max.: 40A

• Charging current max.: 4A (über MPX Stecker)

Scope of delivery

1x JETImodel Receiver Battery Power Ion 3100 Trayless
