JETI DUPLEX DS-16 II CARBON LINE RED MULTIMODE

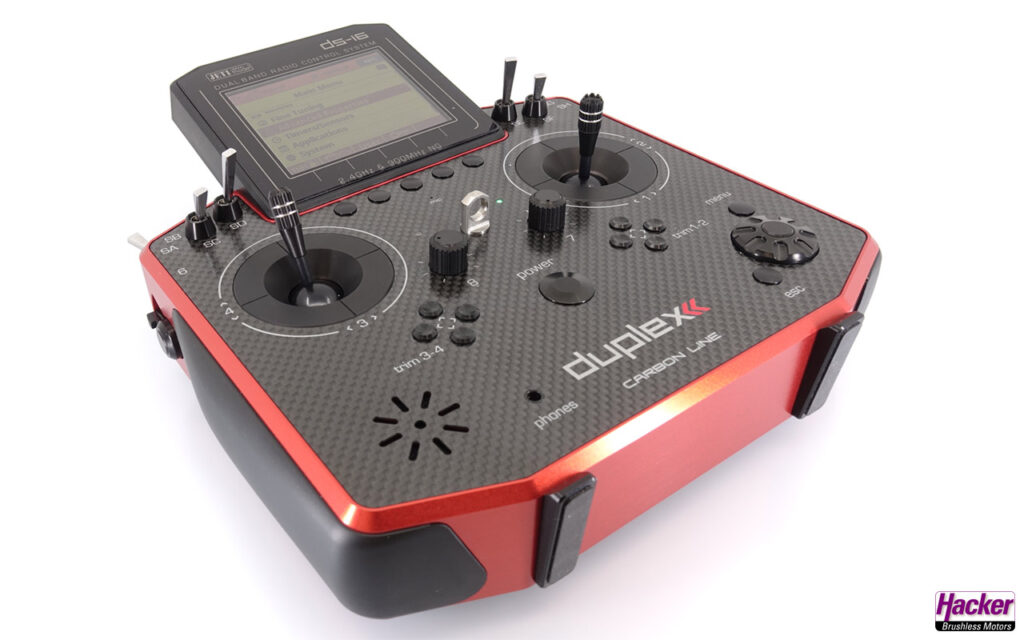

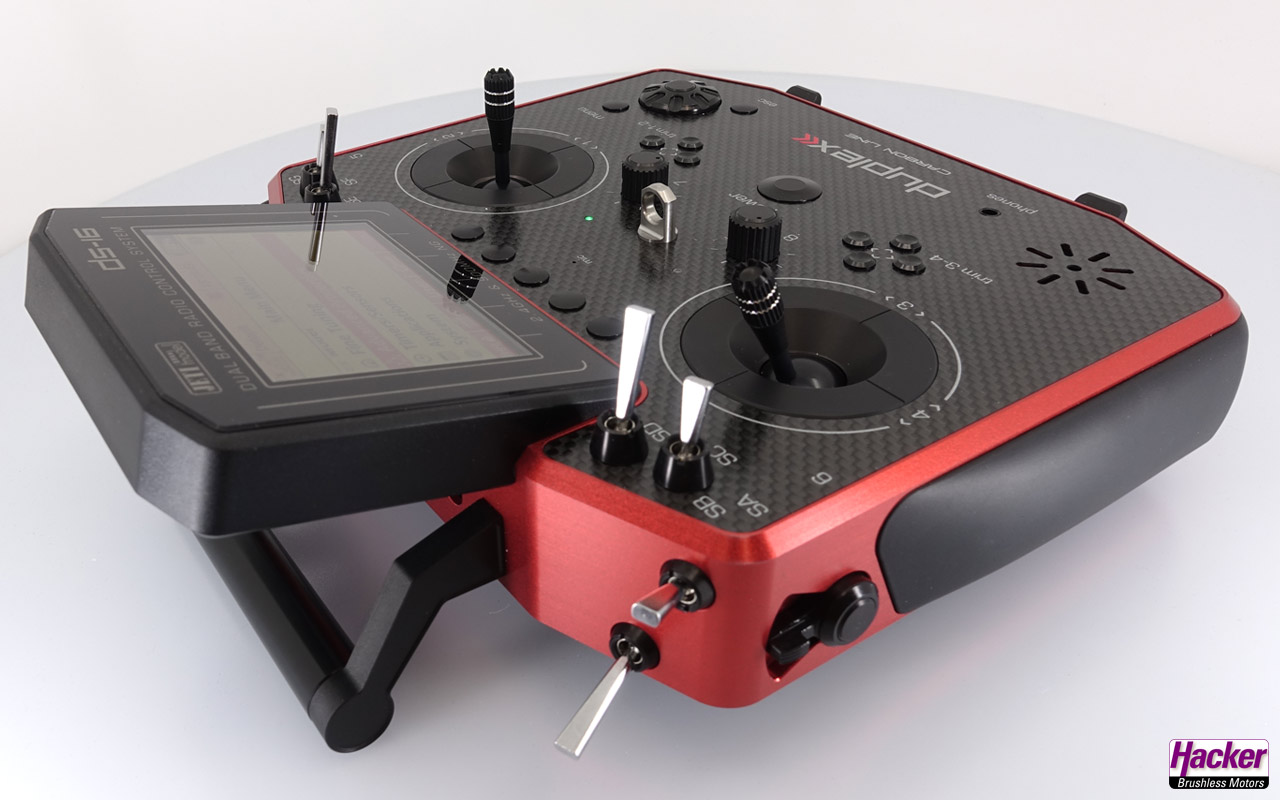

JETI handheld transmitter DS-16 II Carbon Line Red Multimode

Features

• 24 full control channels

• 3 HF modules (2x 2.4Ghz, 1x 900MHz optional)

• color display

• 4 types of models (surface / helicopter / multicopter / functional model)

• MP3 player

• Telemetry processes up to 64 sensor values

• Voice input commands optional

900MHz NG receiver system (optionally)

The 900MHz NG receiver system is suitable for the DS-12, DS-16 II as well as the DC-16 II transmitters. It is an independent, second transmission system in a second frequency range. If this system is used, the model can continue to be controlled even if the 2.4GHz band is disturbed (e.g. by radio relay, during copter flights for television broadcasts, etc.). The 900MHz backup system only becomes active when this occurs. So it essentially serves to expand the safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4 GHz transmission system, not individually.

Transmitter hardware

• Multimode joystick

• Determination of stick positions using Hall sensors (without potentiometer)

• Control path resolution 4096 steps

• color display, backlit

• rotating stick aggregate

• Fully aluminum joysticks / aggregates, adjustable in length, with ball bearings

• internal storage

• integrated LiIon battery for long operating time

• Charger

• Aluminum transport case

• Speech

• headphone jack

• digital trims

• anodized aluminum housing

Transmitter software

• 2.4 GHz DUPLEX EX

• 24 control channels

• customizable menu navigation

• almost unlimited setting options

• almost unlimited number of model memories

• Firmware update via USB

• ultra-fast control reactions

• Power management system for longer operating times

• PC interface

• 4 adjustable model types (airplane / helicopter / functional model; multicopter)

• 4 languages ??(EN / DE / CZ / FR)

Telemetry functions

• Voice output of telemetry warnings and telemetry values

• Display of telemetry data in real time on the transmitter display

• Record telemetry data

• PC transmission, storage and processing of telemetry values??

• Saving (backup) the model data and transmitter settings on the PC

Delivery contents

JETI handheld transmitter DS-16 II Carbon Line Red Multimode (delivery state mode 2, control mode very easy to change), receiver REX 10, transmitter battery installed, charger for transmitter battery, strap and stable carrying case.
