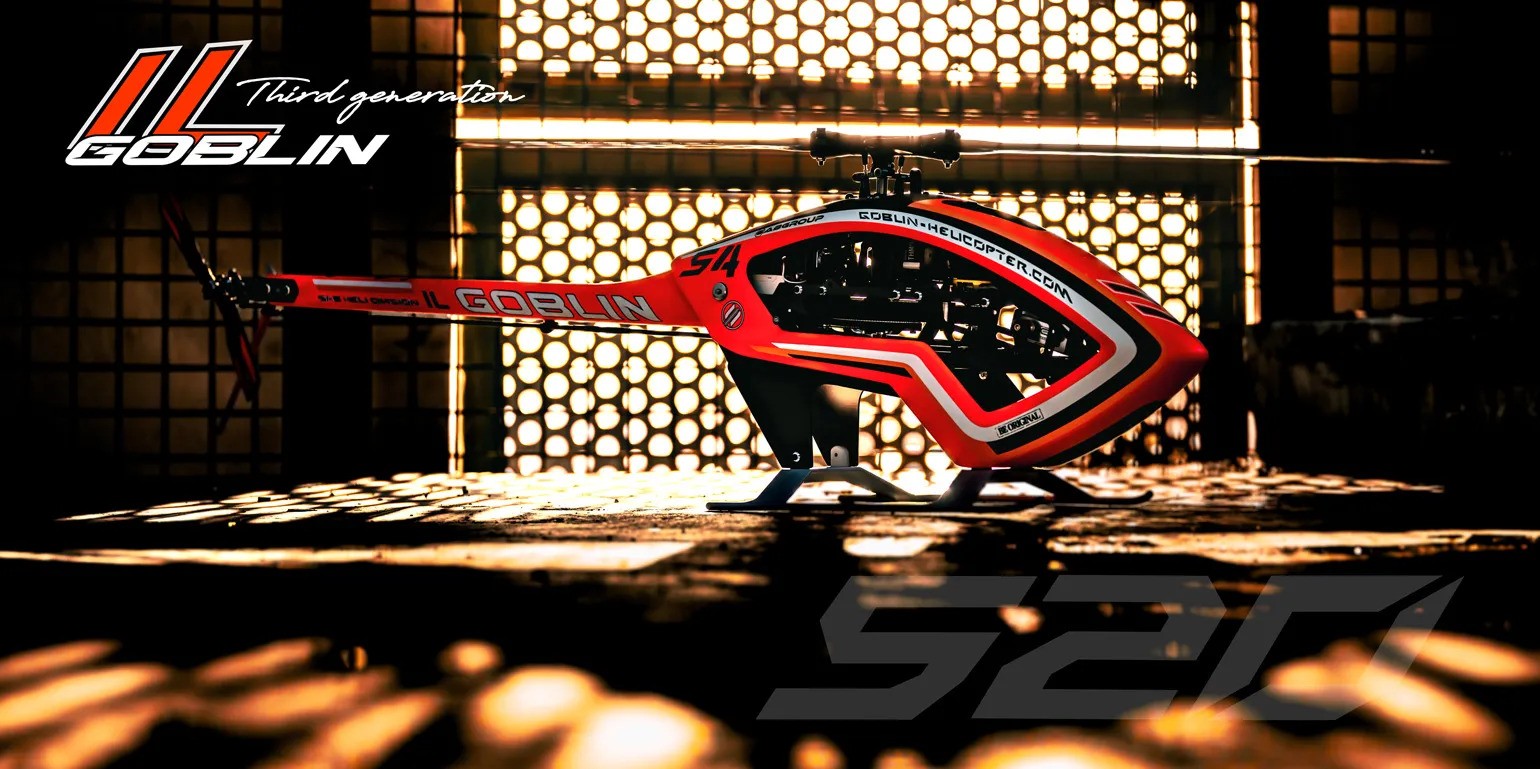

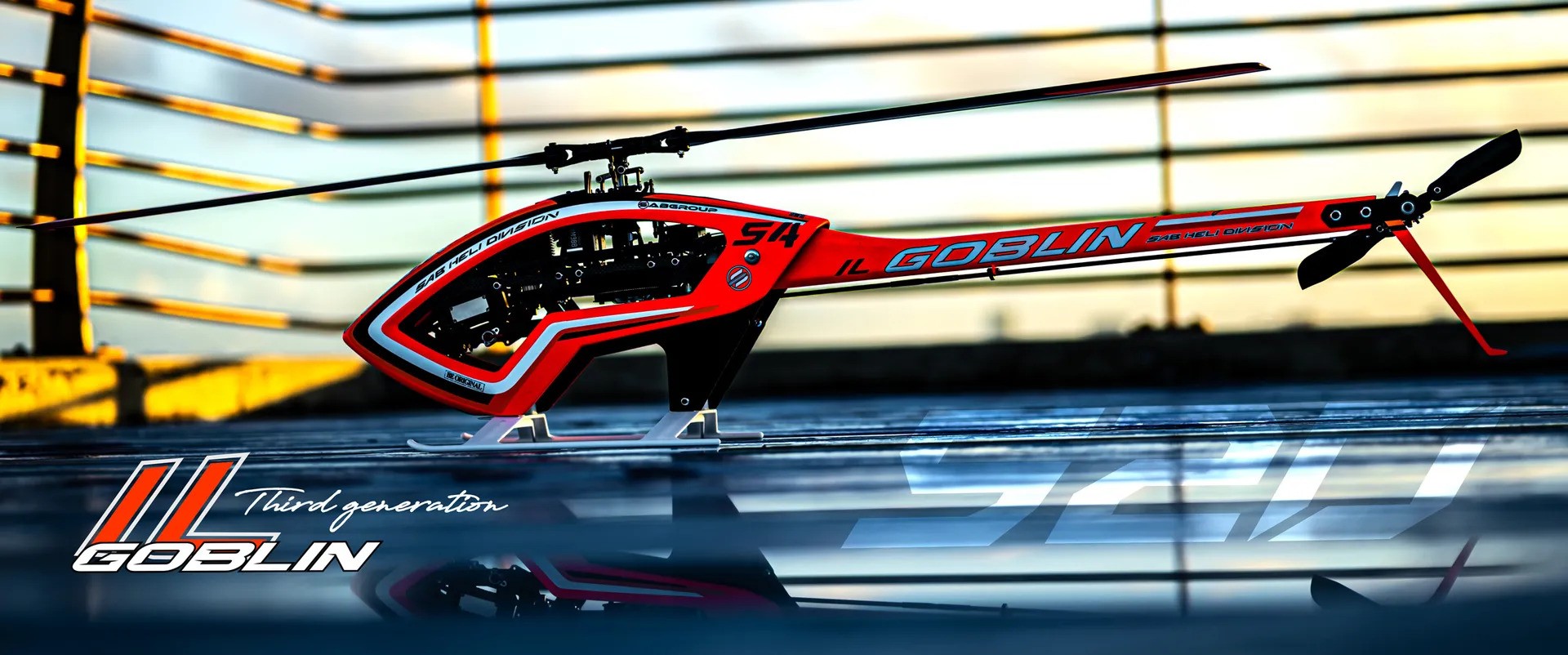

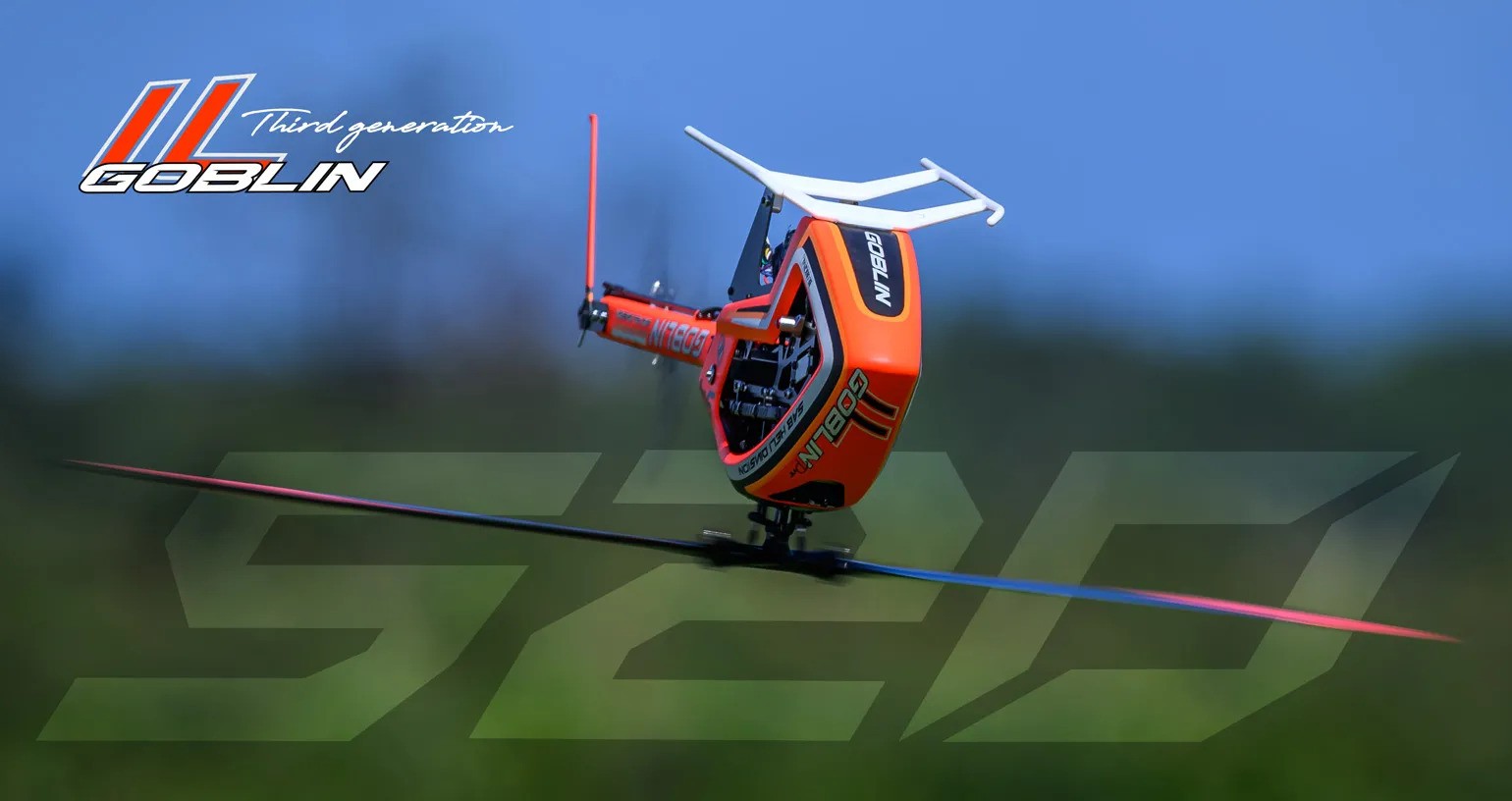

ILGOBLIN PRO 520 ORANGE

Highlights

• ilGoblin Pro Canopy/Boom shape
• New, stronger one way bearing
• New, stronger motor belt transmission
• New, smoother tail belt transmission
• Full Size tail servo compatible
• 520mm main blades/82mm tail blades
• The model supports a rear-inserting battery tray, allowing you to install batteries without ever removing the canopy.

AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)

Main rotor diameter: 1220 mm (with 520 mm main blades)

Main blade length: 480 to 530mm

Tail rotor diameter: 222 mm (with 82 mm tail blades)

Tail blade length: 80 to 85 mm

Cyclic Servos: Mini size 35mm

Tail Servo: Mini size 35mm/Standard size 40mm

Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)

Tail Rotor Ratio: 3.88.1

Main shaft: 8 mm, Tail shaft: 5 mm

Molded carbon tail boom

Typical motor: 6S, 800/900 KV

Battery room: 48x48x150mm
