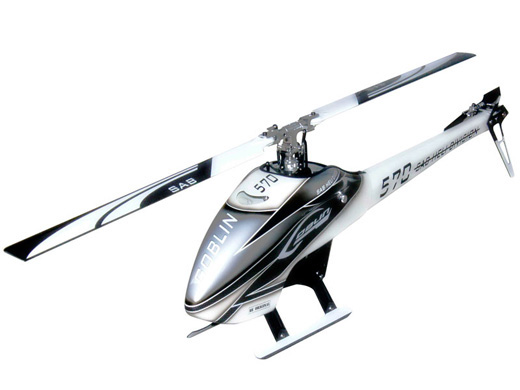

GOBLIN 570 WHITE/BLACK

General Specifications:

• Main rotor diameter: 1278 mm (with 570 mm blades)

• FBL System

• Main blade length: 550 to 575mm

• Tail rotor diameter: 260 mm

• Tail blade length: 95 mm

• Main shaft diameter: 10 mm

• Spindle diameter: 8 mm

• Weight including electronics: 2400 g (excluding batteries).


Special feature:

• Full carbon boom

• Battery tray 6S and 12S

• Inside carbon rod

• Dampened tail system


Electronic Specifications:

• Cyclic Servos: Standards size 40mm

• Tail Servo: Standards size 40mm



Typical speed controller:

• 6S 100A
• 12S 80A

• Maximum motor size: 4025 size (52 mm diameter, 56 mm height)

• 6S 1000-1400 Kv
• 12S 500-700 Kv

• Battery compartment:

• 6S 5000/5500 mAh. Max dimension 50x60x200mm
• 12S 2600/3300 mAh. Max dimension 50x45x280mm
