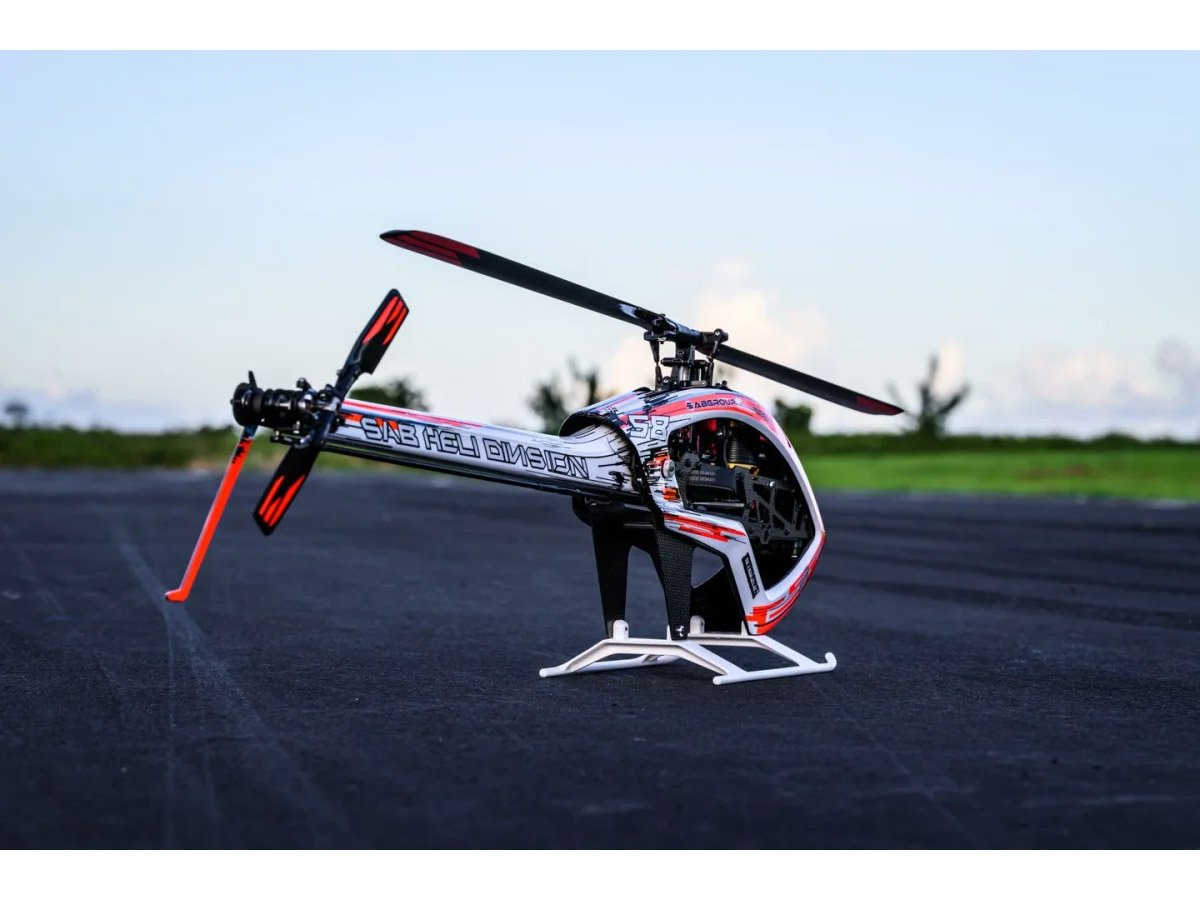

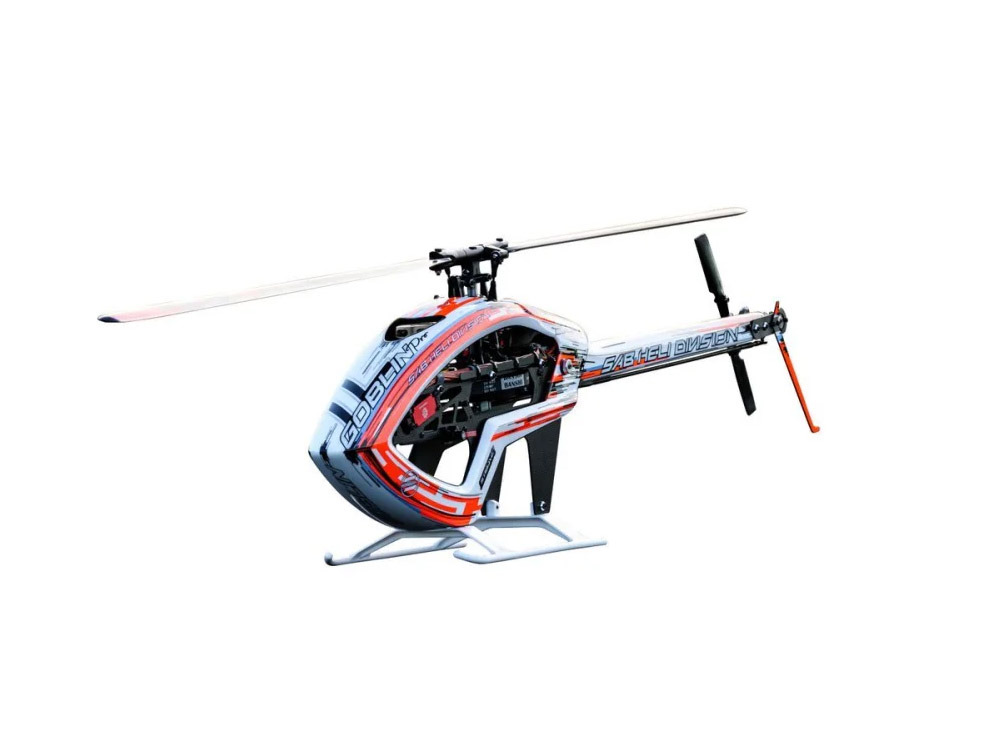

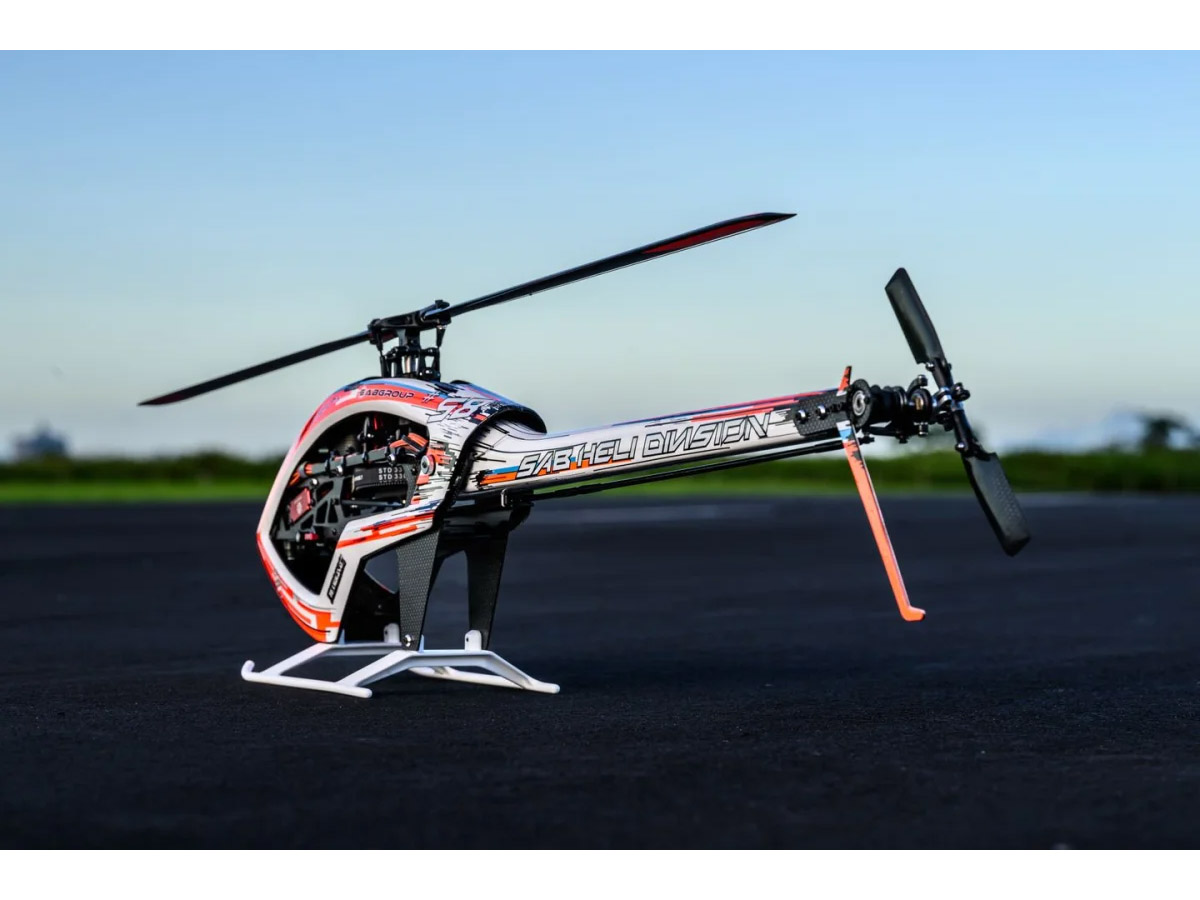

ILGOBLIN PRO 420 WHITE

SAB IL GOBLIN PRO 420

SAB was the first manufacturer to market the Goblin 420 with a direct-drive motor, opening up new possibilities in this class.
To maximize the power-to-weight ratio, SAB later developed the belt-drive version: lighter, more powerful, and even more extreme.

Now SAB raises the bar again by combining technology and design.
Inspired by the iconic lines of the 700 Series, the new IL GOBLIN 420 brings the same breathtaking appeal to the 420 class.

Performance, style, innovation.

• Main rotor diameter: 935 mm (with 420 mm blades)
• Main blade length: 380 to 420 mm
• Tail rotor diameter: 194 mm (with 72 mm tail blades)
• Tail blade length: 60 to 72 mm
• Required servos: Micro (23 mm)
• Required tail servo: Midi / Mini (35 mm)
• Maximum battery size: 140 x 40 x 50 mm (max.)
• Recommended battery: 6s 2200/2700 mAh (up to 3300 mAh is possible depending on the manufacturer)
• Recommended motor: 3020 – 3215 – 3220
• Recommended motor KV: 800–1000 KV
• Recommended battery weight: 350–420 grams
• Recommended ESC: 60 A (70–80 A only required for hard 3D at temperatures above 30°C)
• Tail rotor ratio 4:1
• 8 mm main rotor shaft
• 5 mm tail rotor shaft

IL Goblin 420 Key Features:

• Quick-release battery compartment with integrated connectors
• Zytel HTN plastic blade grip arms (consumable)
• No need to remove the canopy to replace the batteries.
• Main gear ratio 1:5/6
• Rear gear ratio 4:1

Additionally required :

Recommended accessories (not included)

• 3x MICRO swashplate servos (23mm)
  1x MINI tail servo (35mm)
  1x 60-80A speed controller
  6S flight battery 2200-2700mAh, 40x50x140mm
  Motor 2820-3020-3215-3220 / 800-1000KV

This model helicopter is not suitable for children under 14 years!
