ILGOBLIN COMPETIZIONE NITRO



Airframe weight: 2340 g (No engine, no blades)

Main rotor diameter: 1576 mm (with 700 mm main blades)

Main blade length: 650 to 730 mm

Tail rotor diameter: 292 mm (with 110 mm tail blades)

Tail blade length: 105 to 115 mm

Cyclic Servos: Standard size 40 mm

Tail Servo: Standard size 40 mm

Throttle Servo: Standard (40 mm) or Mini size (35 mm)

Main Rotor Ratio: 8.3 to 7.7 (26T included: 8.3:1)

Tail Rotor Ratio: 5.1–4.1 : 1 (23T included: 4.7:1)

Engine: .90 to .105 Nitro Heli Engine

Tank Capacity: 650 ml

RX Battery Size: 2S 1800 / 2500 mAh

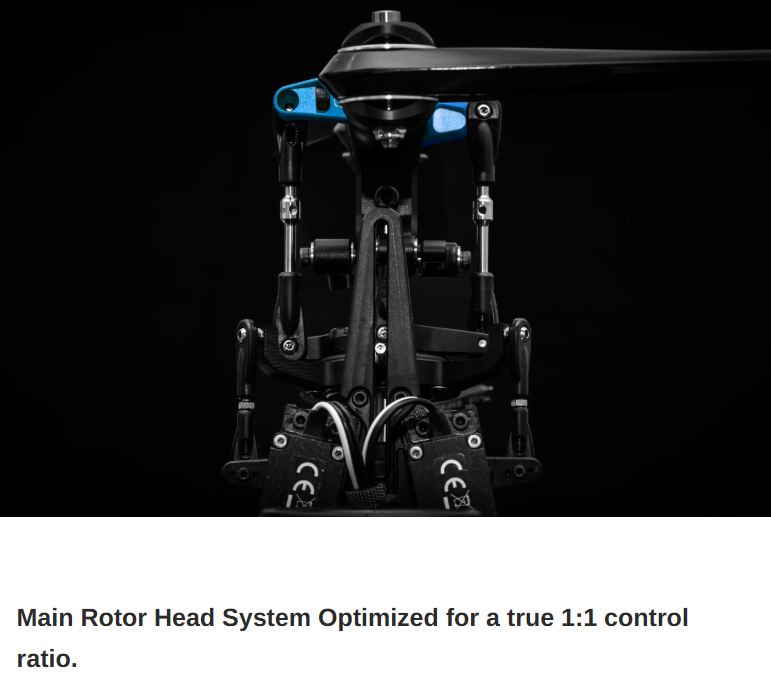

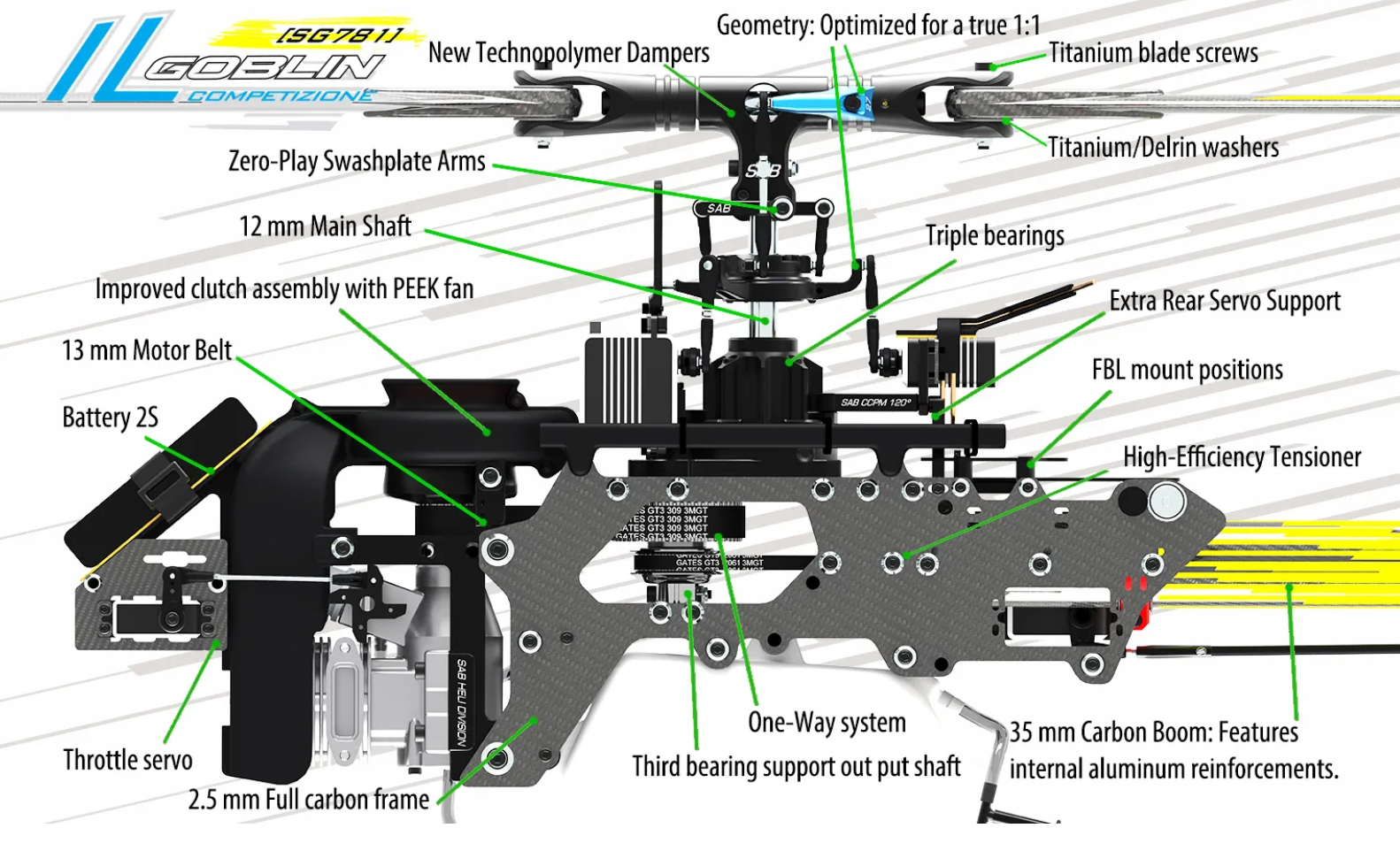

Main Rotor Head System Optimized for a true 1:1 control ratio.



New PEEK Rigid Damper



35mm Carbon Fiber Tail Boom W/ New Tail Boom Locking Washer



27mm Blue Radius Arm



Titanium Blade Screws/ Titanium-Delrin Blade Washers



New Tail Belt Tension System



New Rear Cyclic Servo Mount



Light Weight 35mm Tail Case
