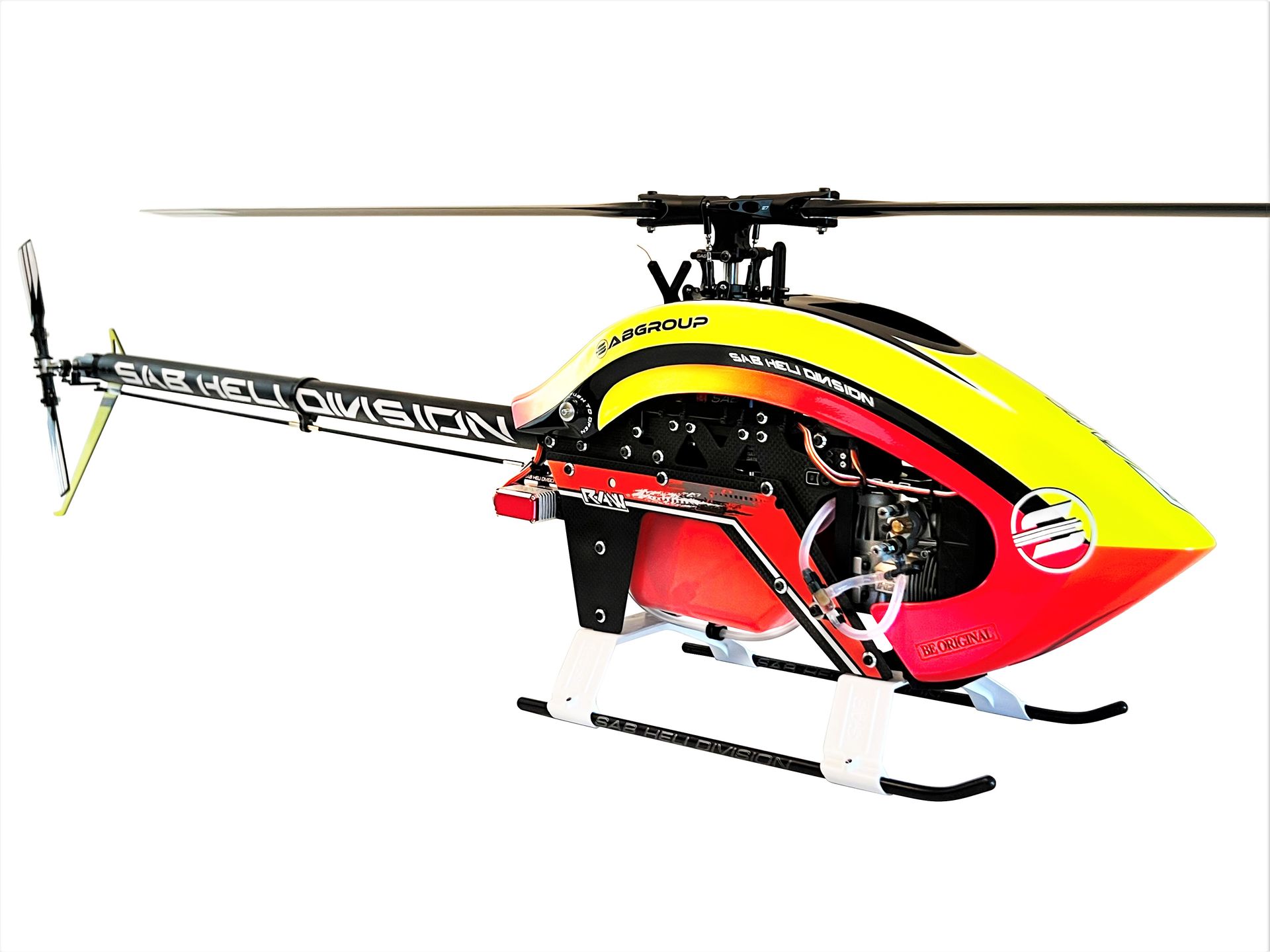

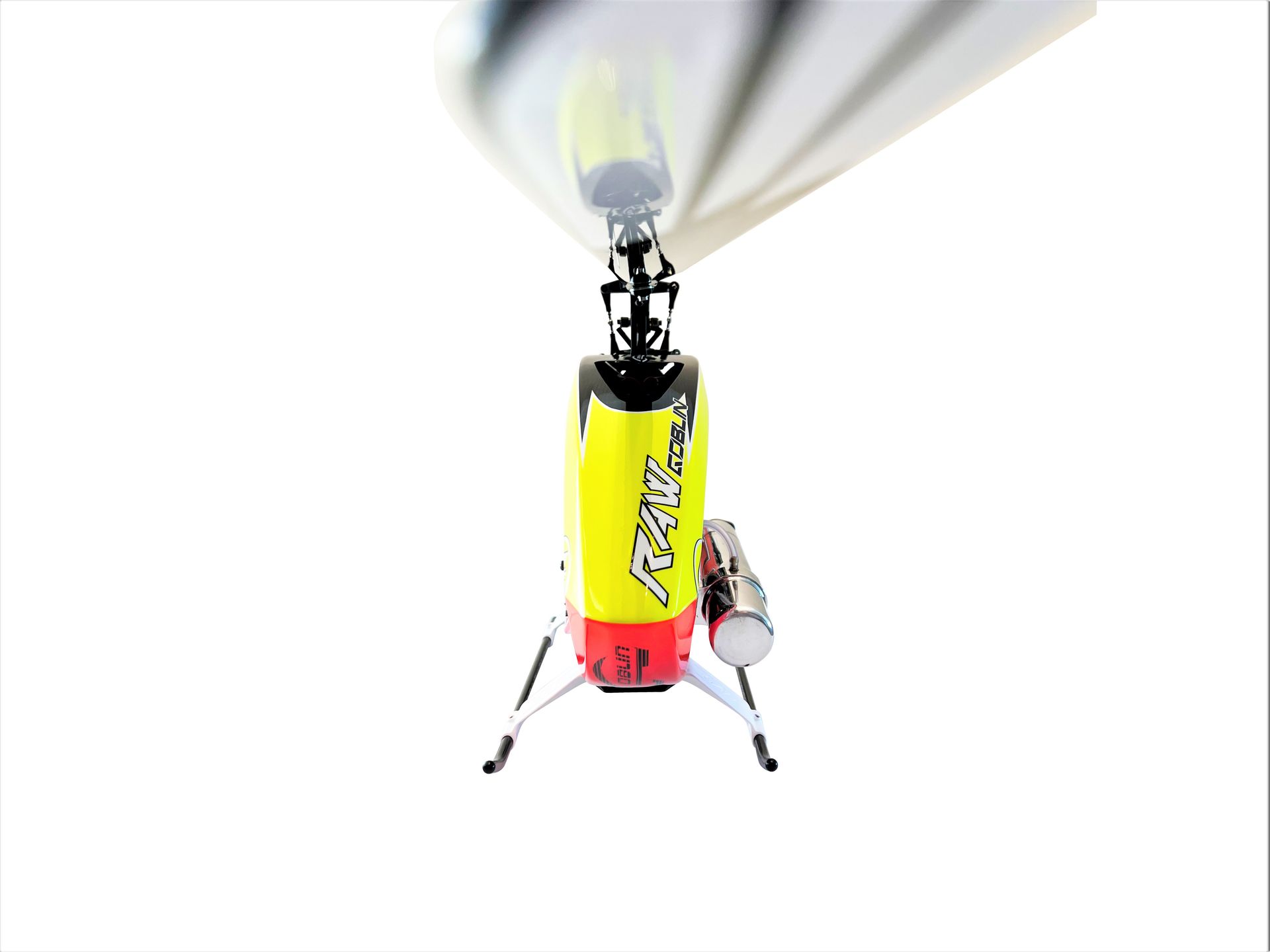

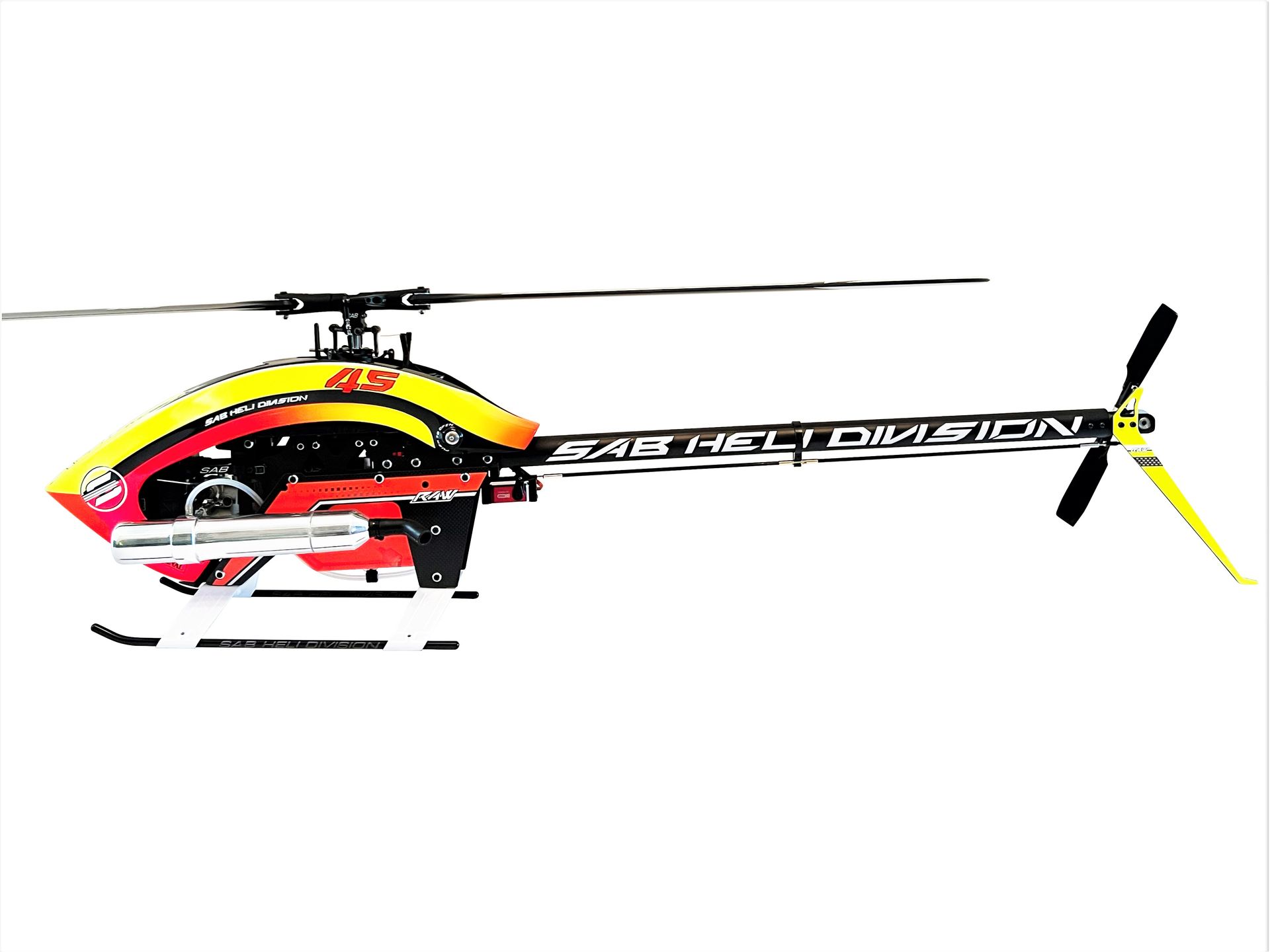

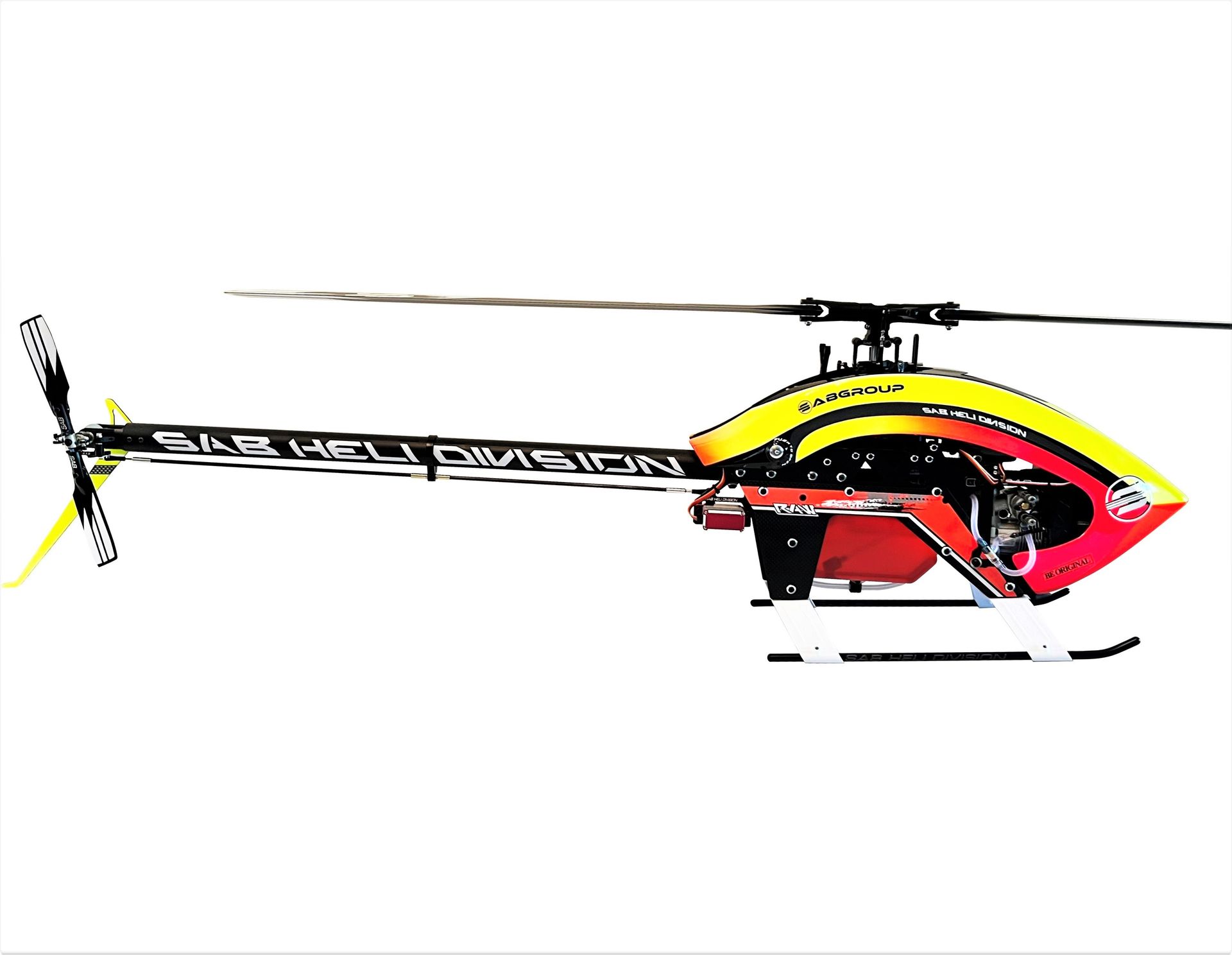

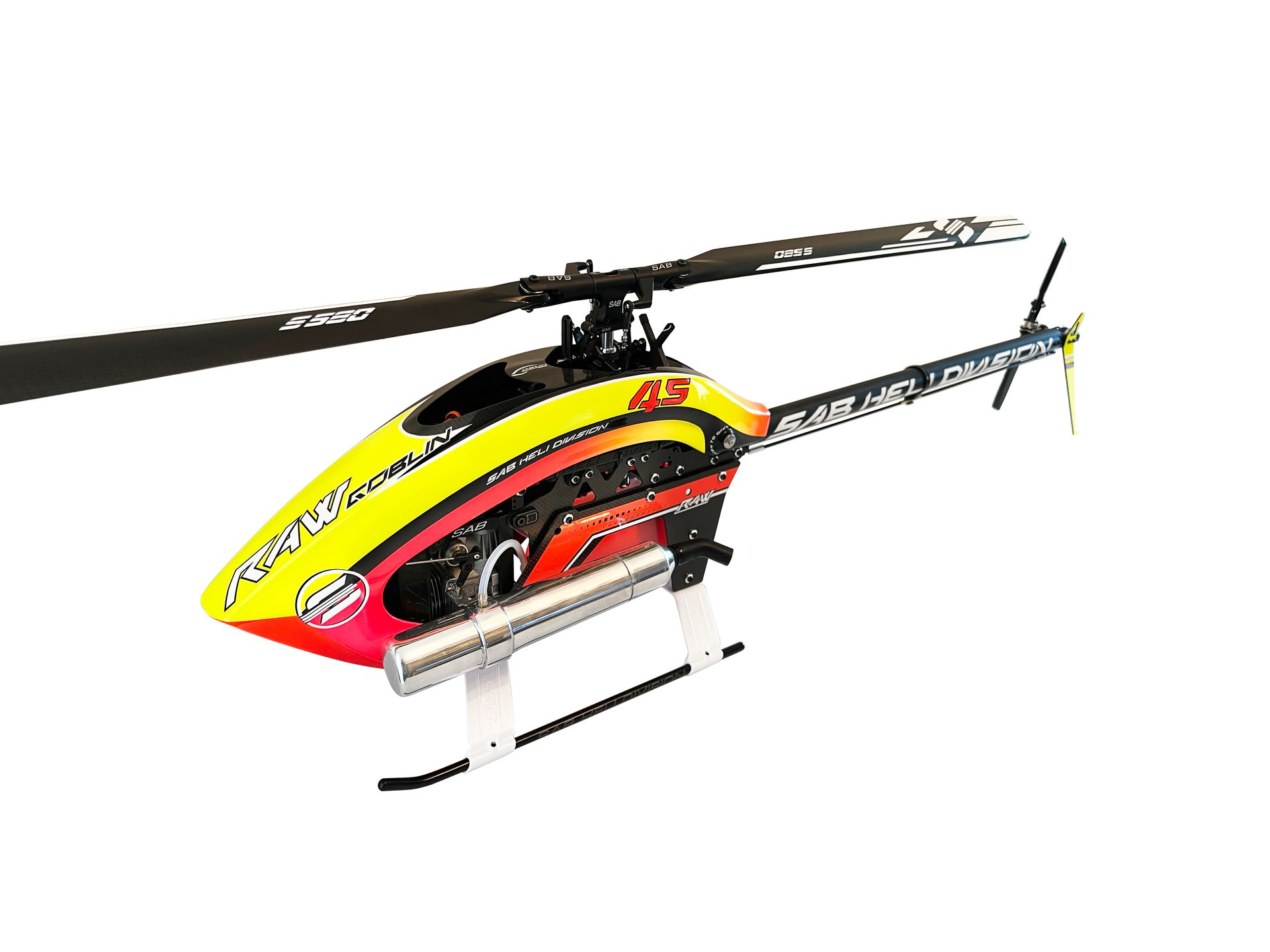

GOBLIN RAW 580 NITRO KIT

Technical Specifications:

• RTF Approx. Weight: 3080 grams (no fuel)

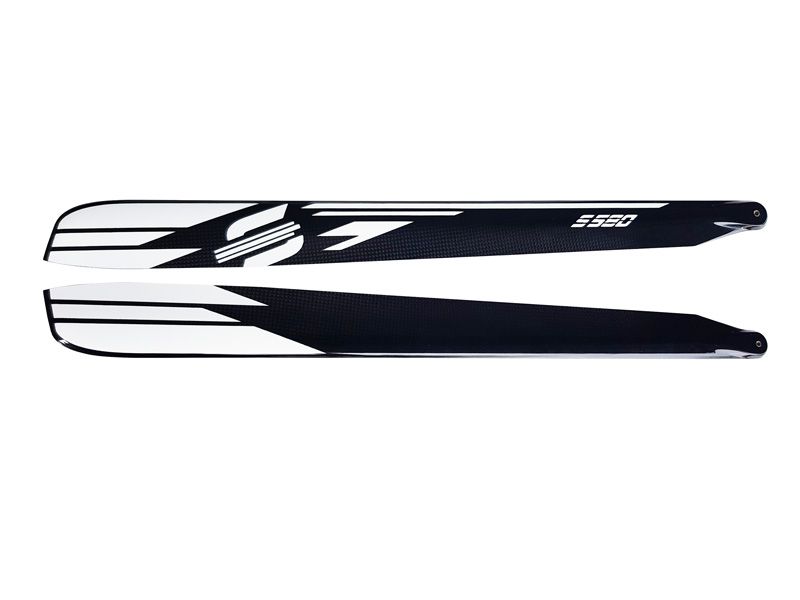

• Main blade length: 550mm to 600mm (580 mm included)

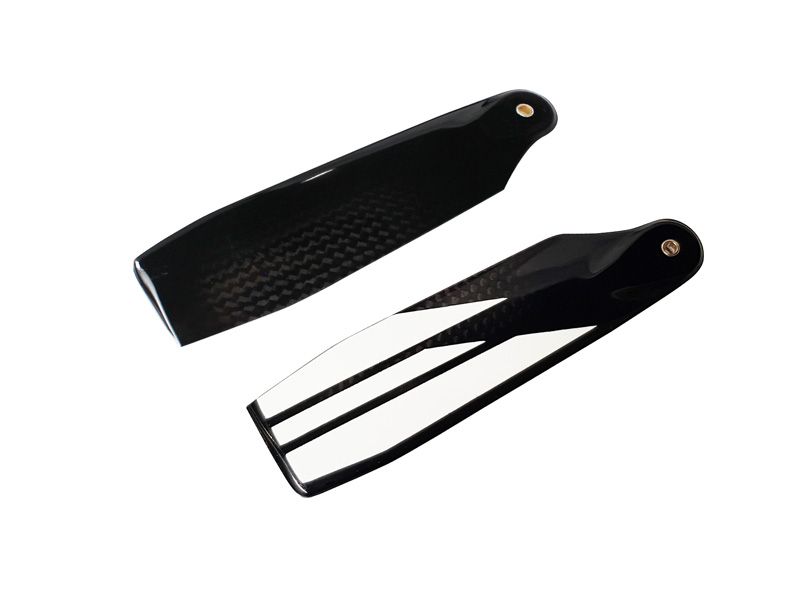

• Tail blade length: 95 to 105 mm (95mm included)

• Cyclic Servos: Mini size 35 mm (Standard size 40mm option)

• Tail Servo: Standard size 40mm

• Main Rotor Ratio: 8.6 to 7.4 :1 (26T included: 8:1)

• Tail Rotor Ratio: 5.3-4.9:1 (23T included: 4.9:1)

• Engine: .50 to .60 Nitro Heli Engine

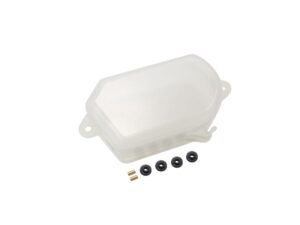

• Tank size: 440ml

• RX battery size: 2S -1800 mAh

Configuration	580/600
Available P/N	SG584
Main rotor diameter	1296mm with 580mm Main Blades
Main blade length	550mm to 600mm
Tail rotor diameter	260mm with 95mm Tail Blades
Tail blade length	95mm to 105mm

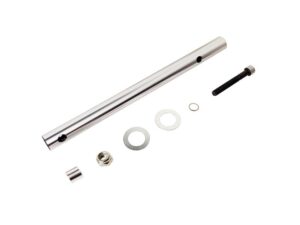

Main shaft diameter	10mm
Tail shaft diameter	5mm
Weight	3080 g (no fuel)
