XNOVA LIGHTNING 4530-525KV – Shaft A

Features:

• Designed for extreme 3D flying
• Developed for 700-800mm helicopters
• Optimized for 12S applications
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 300 degree C
• Precise balanced
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 94%
• Cooler running
• Superb quality and machining of CNC parts
• Improved torque and power output
• 1.5mm thick wire

Specifications:
Slots & Poles: 12n10p
Winding T: 4+5 YY with 1.5mm thick wire
rpm/V: 525
Weight (without connector): 565g
Body Length (no shaft): 61mm
Diameter: 55.7mm

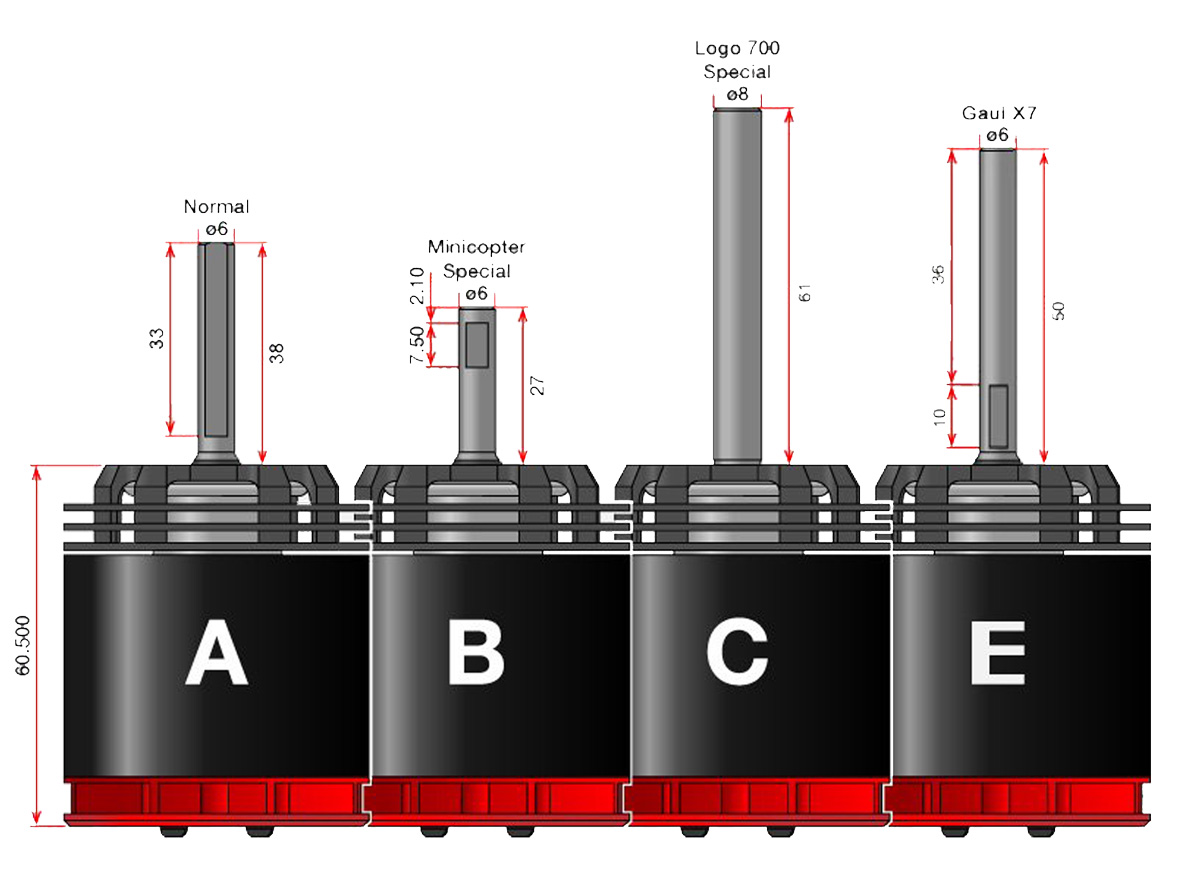

Shaft Length: 38mm
Shaft Dia.: 6mm
Mounting Holes CTC Distance: 30mm
Mounting Screw: 4×07
