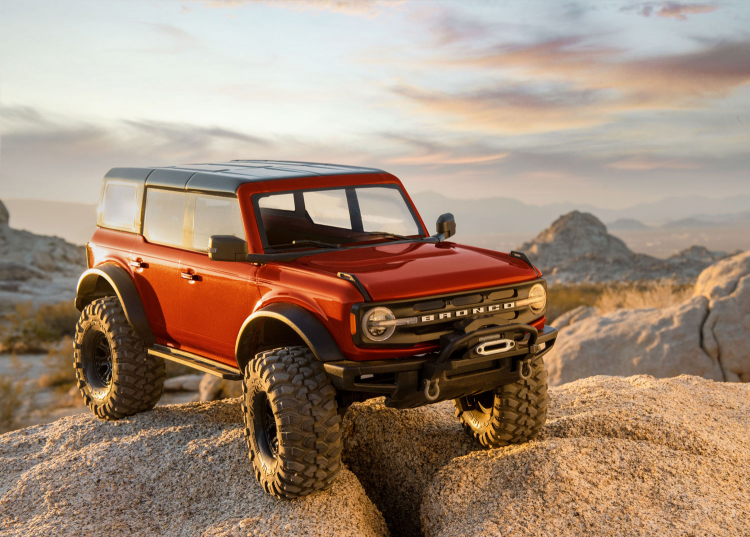

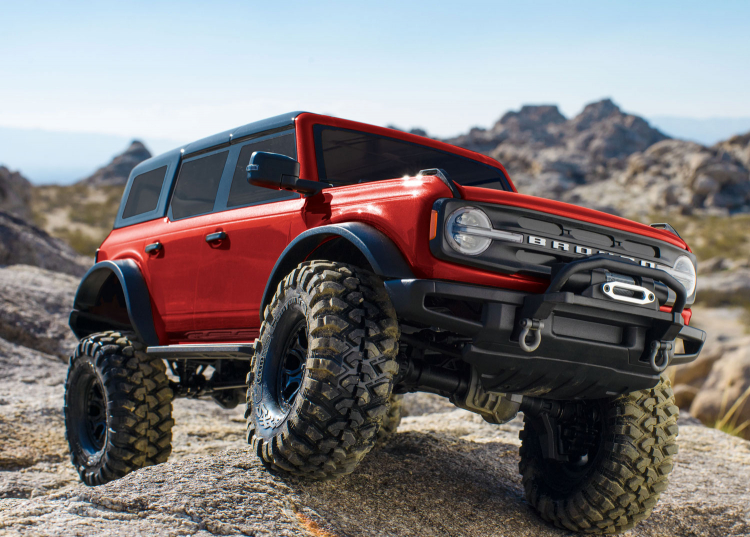

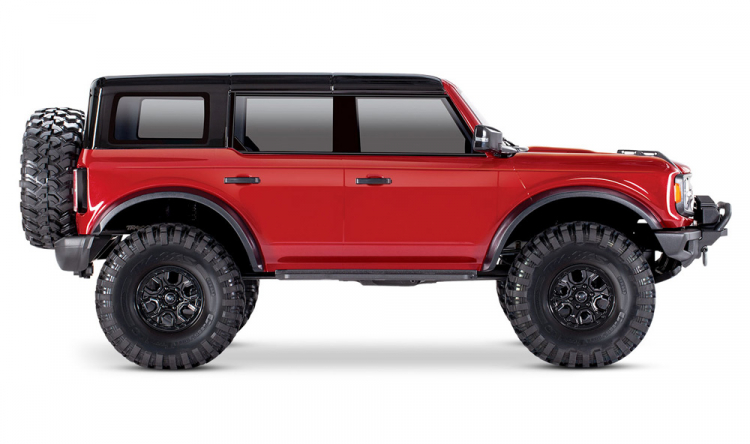

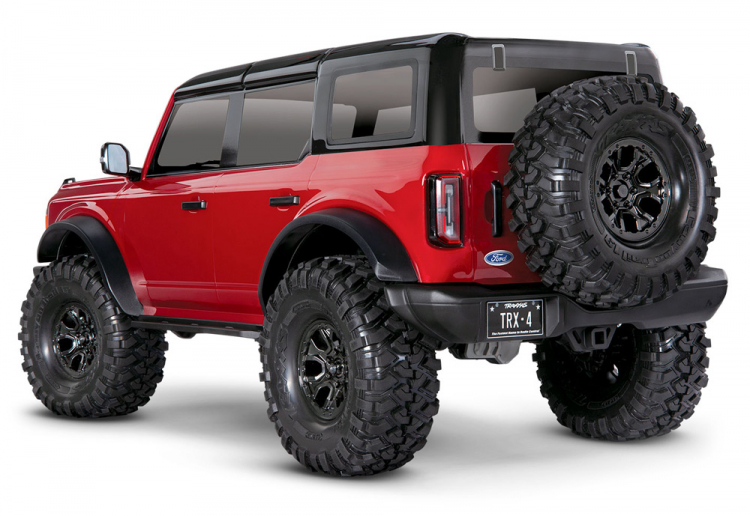

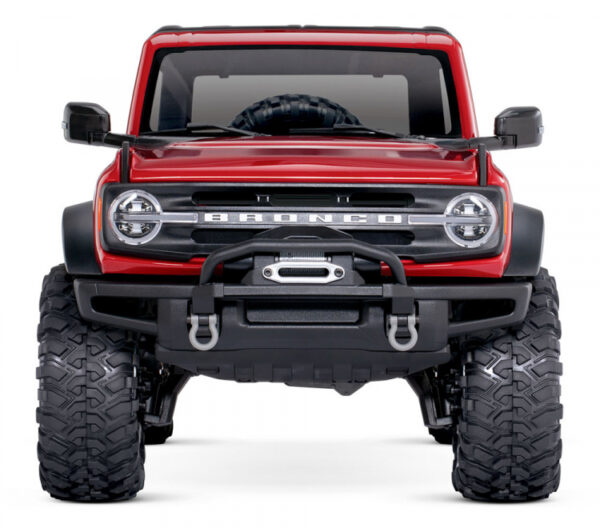

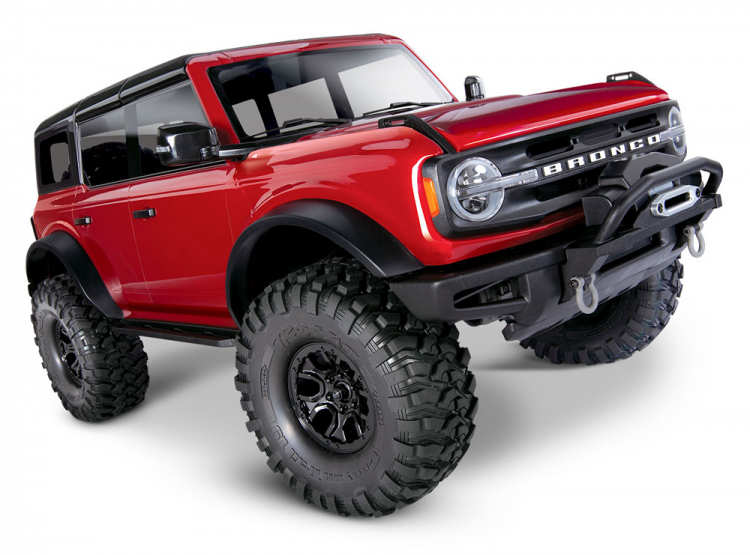

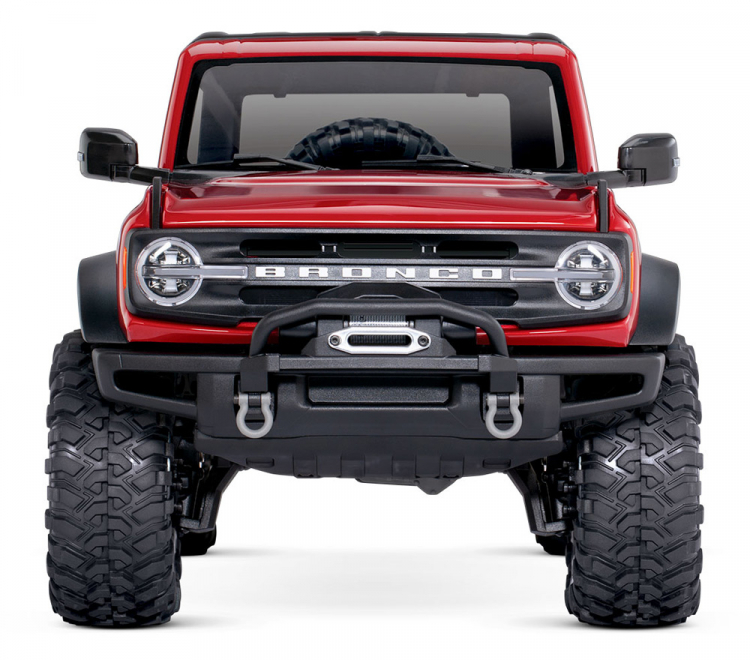

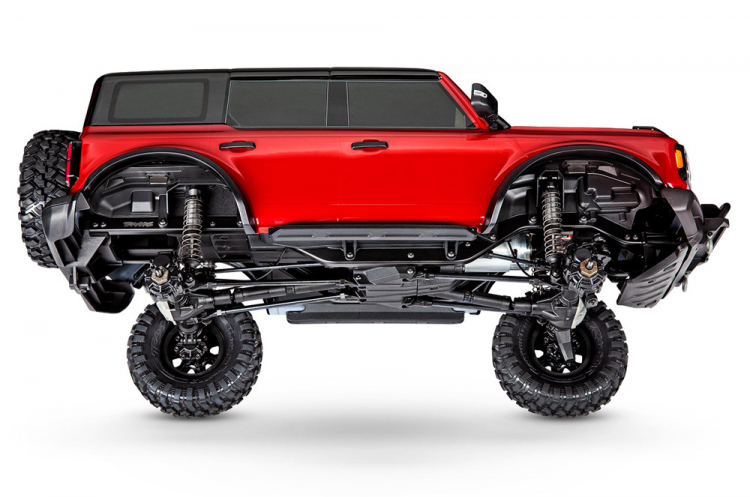

TRX-4 FORD BRONCO 2021 CRAWLER RTR RED- TRAXXAS

TRAXXAS TRX4 – Ford Bronco 2021 Scale & Trail Crawler

AN OFF-ROAD LEGEND RETURNS

The legend is back. After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

Vehicle Specs:

• Length (overall): 584mm
• Length (chassis): 549mm
• Front Track: 249mm
• Rear Track: 249mm
• Ground Clearance: 80mm
• Weight: 2.91kg
• Height: 239mm
• Wheelbase: 324mm

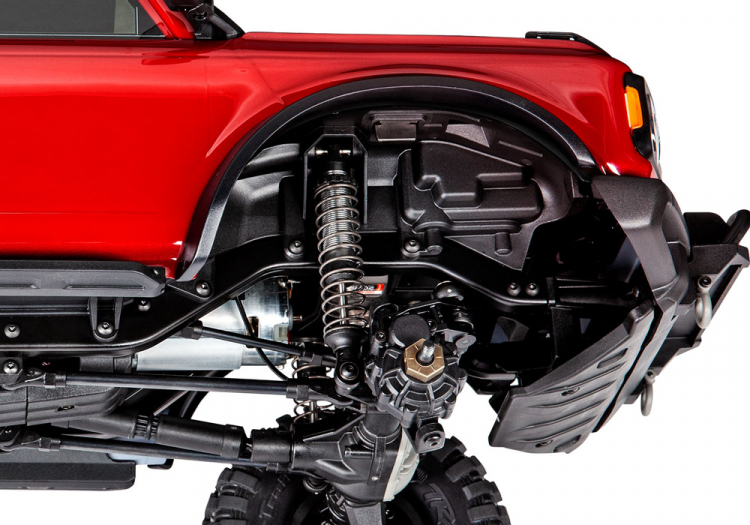

• Front Shock Length: 90mm
• Rear Shock Length: 90mm
• Front Wheels: 1.9 x 1.02” (49 x 26mm)
• Rear Wheels: 1.9 x 1.02” (49 x 26mm)
• Front Tires: 118 x 48mm
• Rear Tires: 118 x 48mm

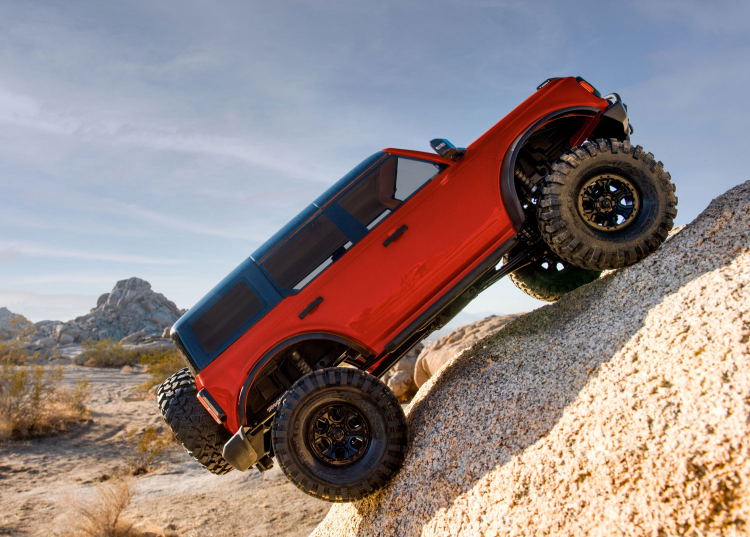

• Approach Angle: 52°
• Departure Angle: 49°
• Breakover Angle: 58°
• Hex Size: 12mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: 2-speed Hi-Lo, Remote Shifting
• Gear Pitch: 32P
• Differential Type: 4 Gear, Remote Locking

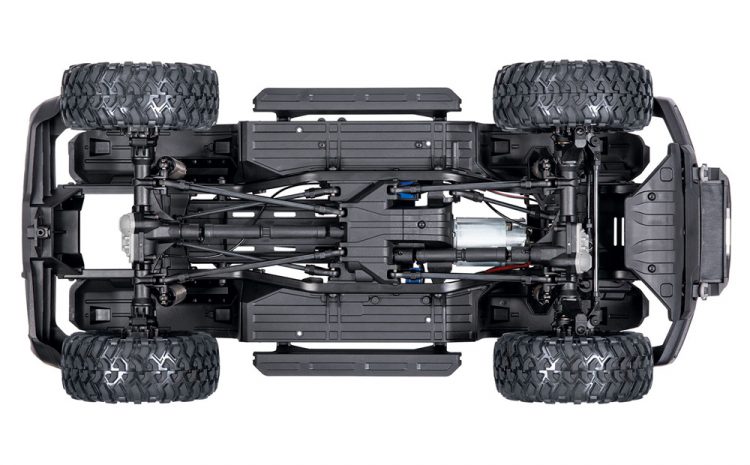

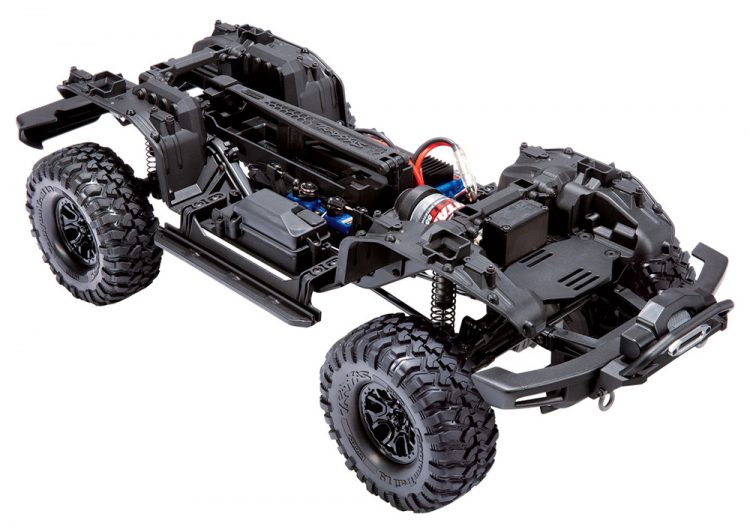

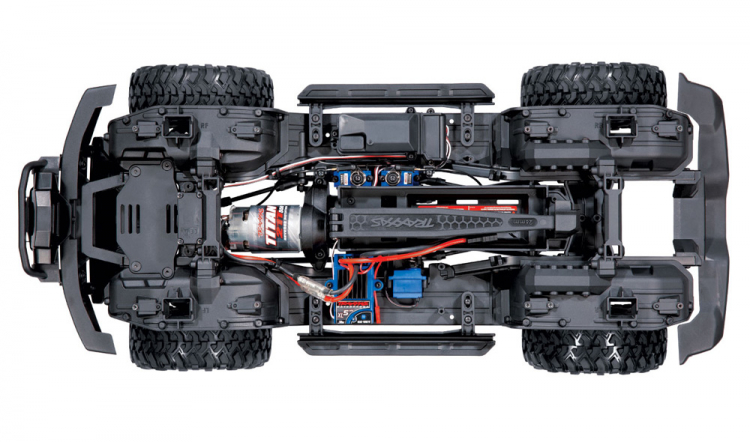

• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 1
• Battery Tray: L158.75 x W47 x H23/26mm

Motor Specs:

• Type: High-torque brushed motor
• Size: 550
• Weight: 390g
• Length: 78mm (overall), 57mm (can)
• Diameter: 38.9mm
• Turns: 21T reverse rotation
• Voltage: 16.8V

ESC Specs:

• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
• Motor Limit: 21-turns (550 size)
• Peak Current – Forward: 100A
• Peak Current – Reverse: 100A
• Braking Current: 60A
• Continuous Current: 18A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal Shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV
• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

* Patented

What’s In The Box:

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

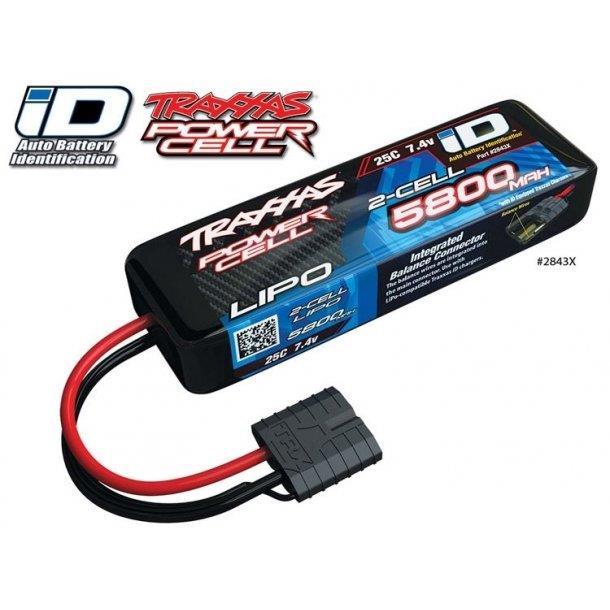

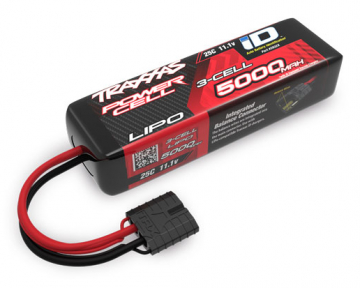

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries: Four AA batteries for the transmitter.
