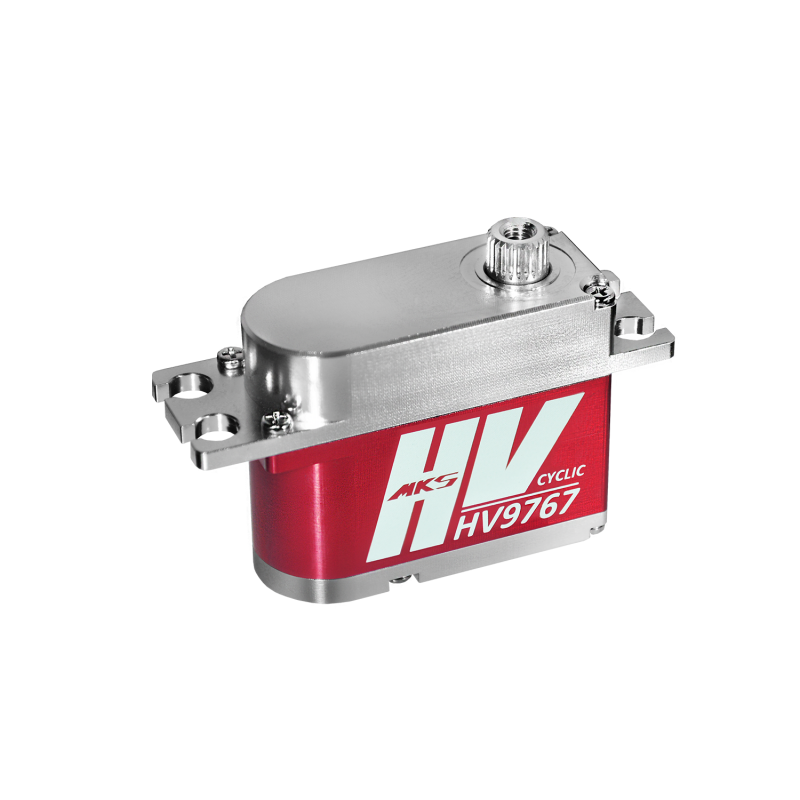

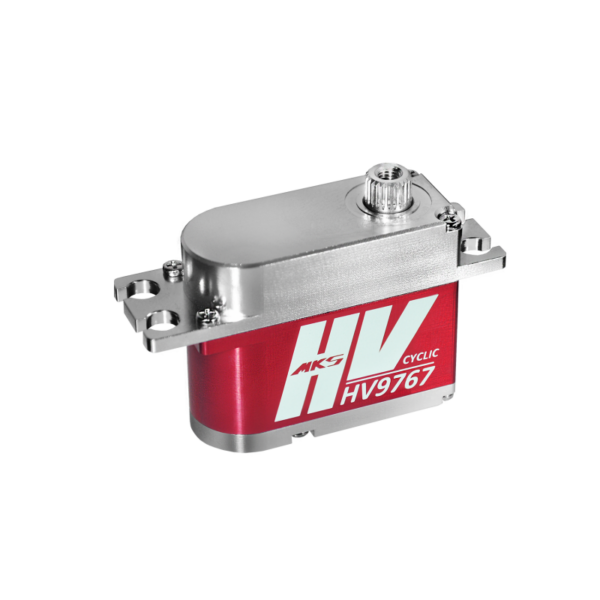

MKS HV9767 CYCLIC SERVO

Torque (kg-cm)

6.8 (6.0V) / 8.5 (7.4V) / 9.4 (8.2V)

Torque (oz-in)

94.4 (6.0V) / 118 (7.4V) / 130.5 (8.2V)

Speed

0.090 s (6.0V) / 0.078 s (7.4V) / 0.070 s (8.2V)

Stall Current (at locked load)

2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)

Working Voltage

6.0V ~ 8.4V DC Volts

Working Frequency

1520μs / 333Hz

Dead Band

0.001 ms (Default)

Bearing

2* Ball Bearing

Gear

Metal Alloy Gear

Motor

Coreless Motor

Wire Length

29.5 cm
