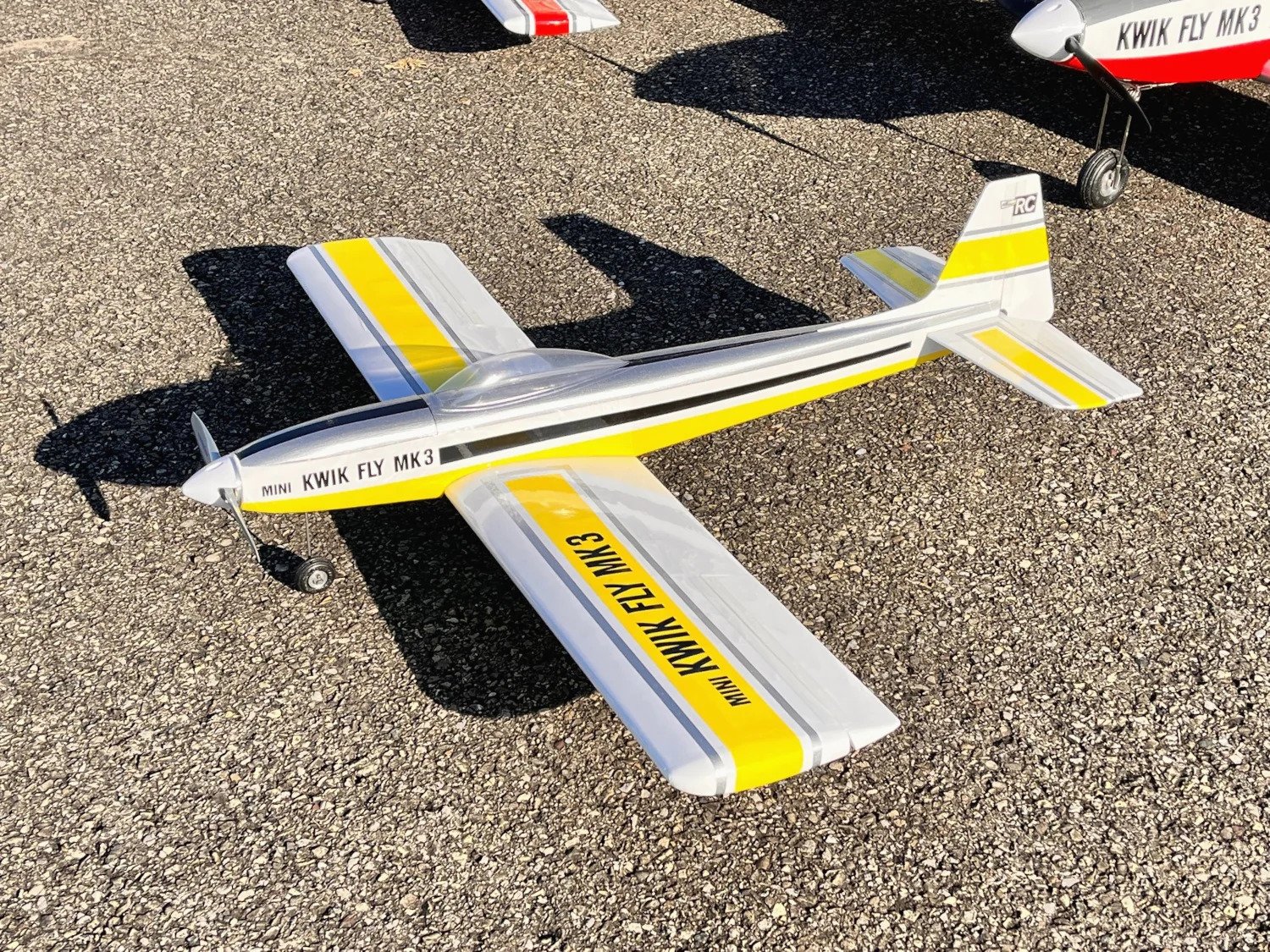

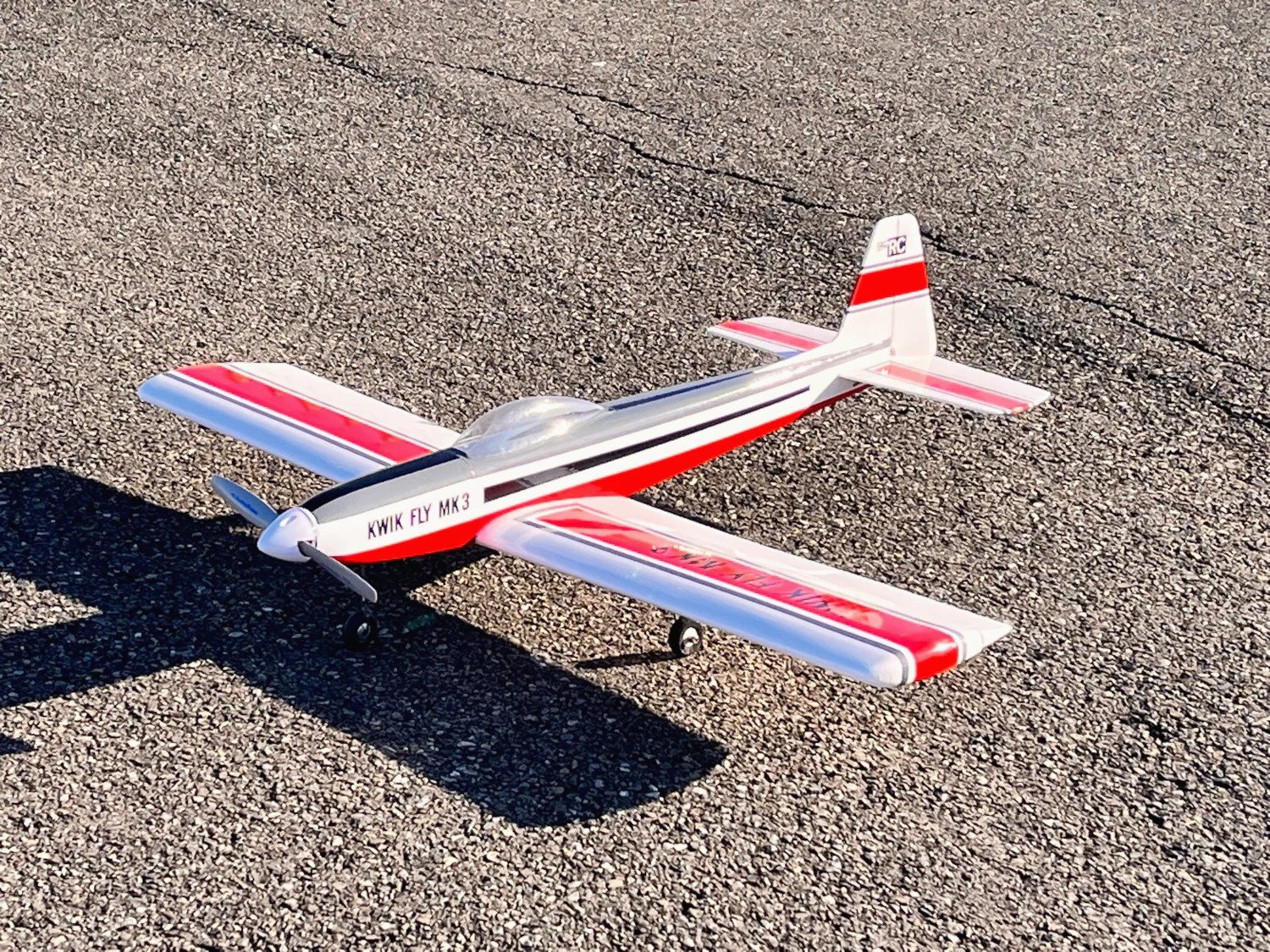

MINI KWIK FLY MK3 KIT

Description:

The MINI KWIK FLY model is a half size replica of Phil Kraft’s KWIK FLY MK3.

With a wingspan of 800 mm and electric motors with 3S LiPo,

the model is ideal for flight enthusiasts looking for balanced flight characteristics.

The structure of the model was deliberately kept simple in order to enable problem-free

assembly even for less experienced model builders.

The model requires a remote control with at least 4 functions,

including rudder, elevator, aileron and engine speed.

With a 4-channel system, the ailerons must be combined using a V-cable.

The MINI KWIK FLY model is the perfect choice for model flyers looking for a reliable and easy-to-handle model.

Technical specifications:

Span approx. 800 mm

length o.a. approx. 710 mm

Wing area approx. 11.8 dm²

Elevator volume approx. 2.8 dm²

Total area approx. 14.6 dm²

Flight weight depending on equipment from approx. 680g

Required accessories:

Propeller Super Nylon 1316.18×10 Order no. 1316.18×10

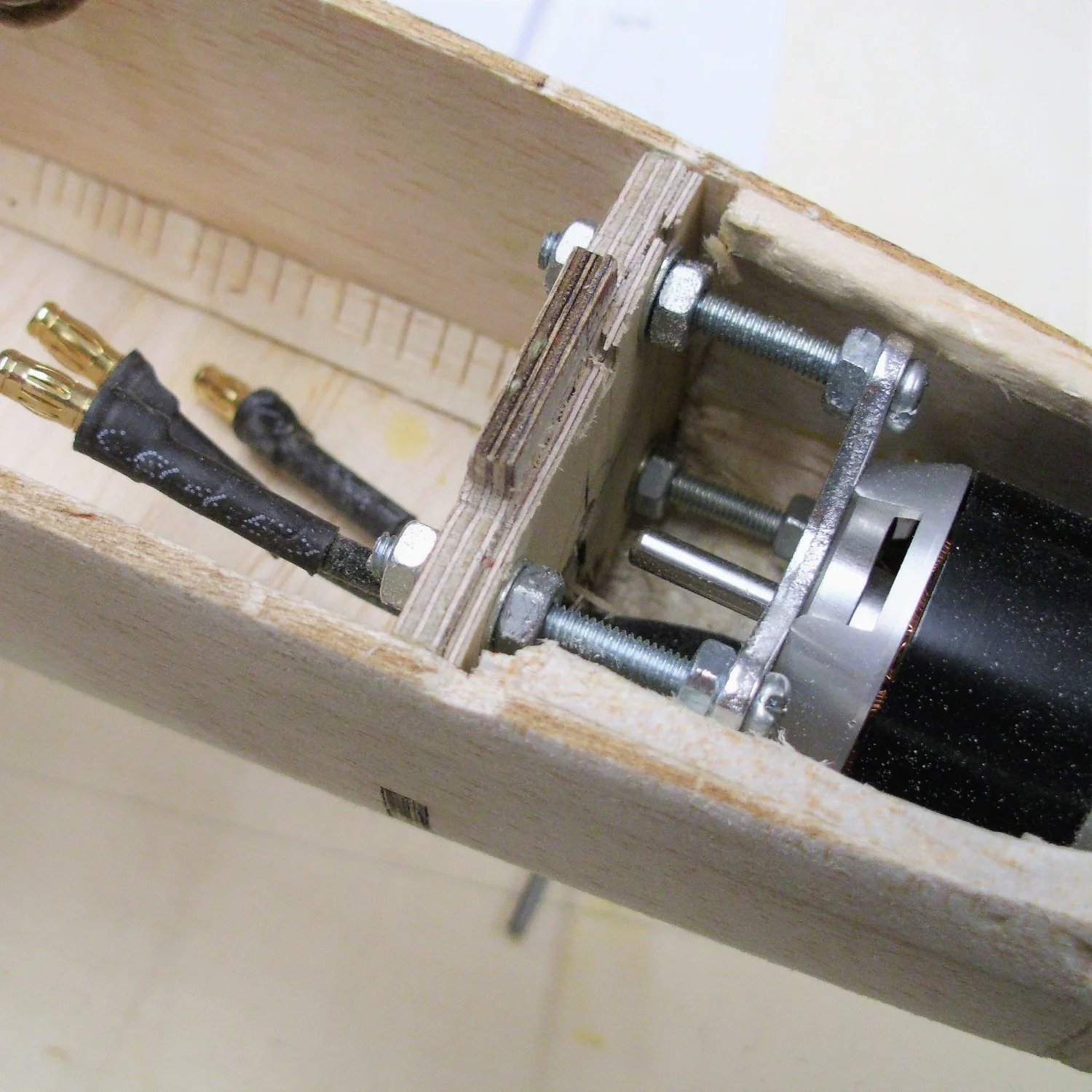

Motor recommendation electric motor actro-n 28-3-1300 order no. 7003/03

Actrocon 30A controller Order no. 7003/32

LiPo battery 3 cells / 1600mAh 3

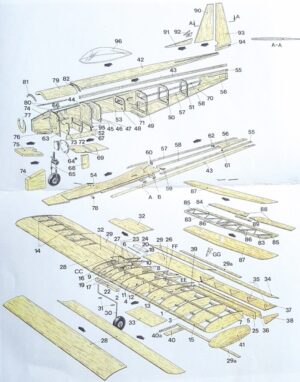

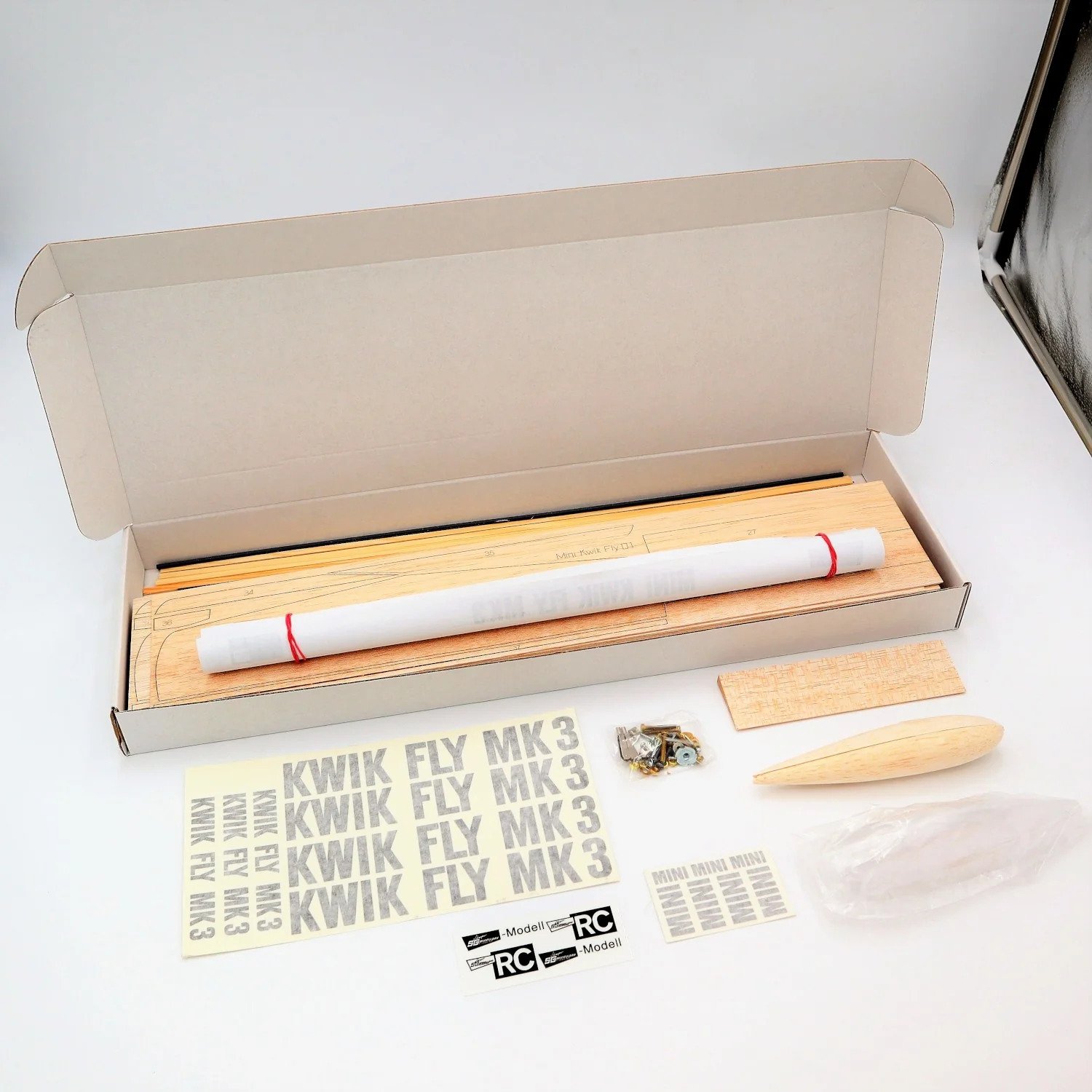

construction plans in DINA3 format (exploded drawing Mini Kwik Fly MK3,

left wing half, right wing half) and building instructions are included with the quick assembly kit.
