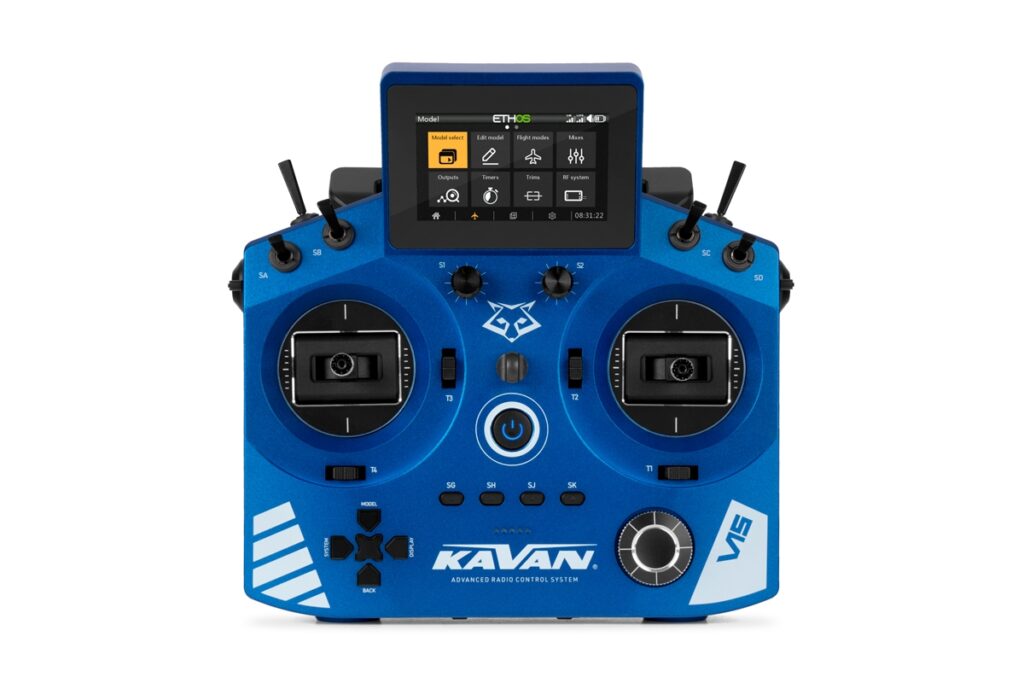

KAVAN V15 TRANSMITTER BLUE

KAVAN V15 is a 24-channel RC kit for advanced recreational and sport modellers working on a Twin 2.4GHz transmission system with full telemetry support. It boasts a peak response time of up to 4 ms, with a range of up to tens of kilometres . You can also choose ACCST D16 or ACCESS transmission systems, also with telemetry. The V15 can therefore be paired with a wide range of KAVAN or FrSky receivers, telemetric or not, with conventional PWM and serial outputs.

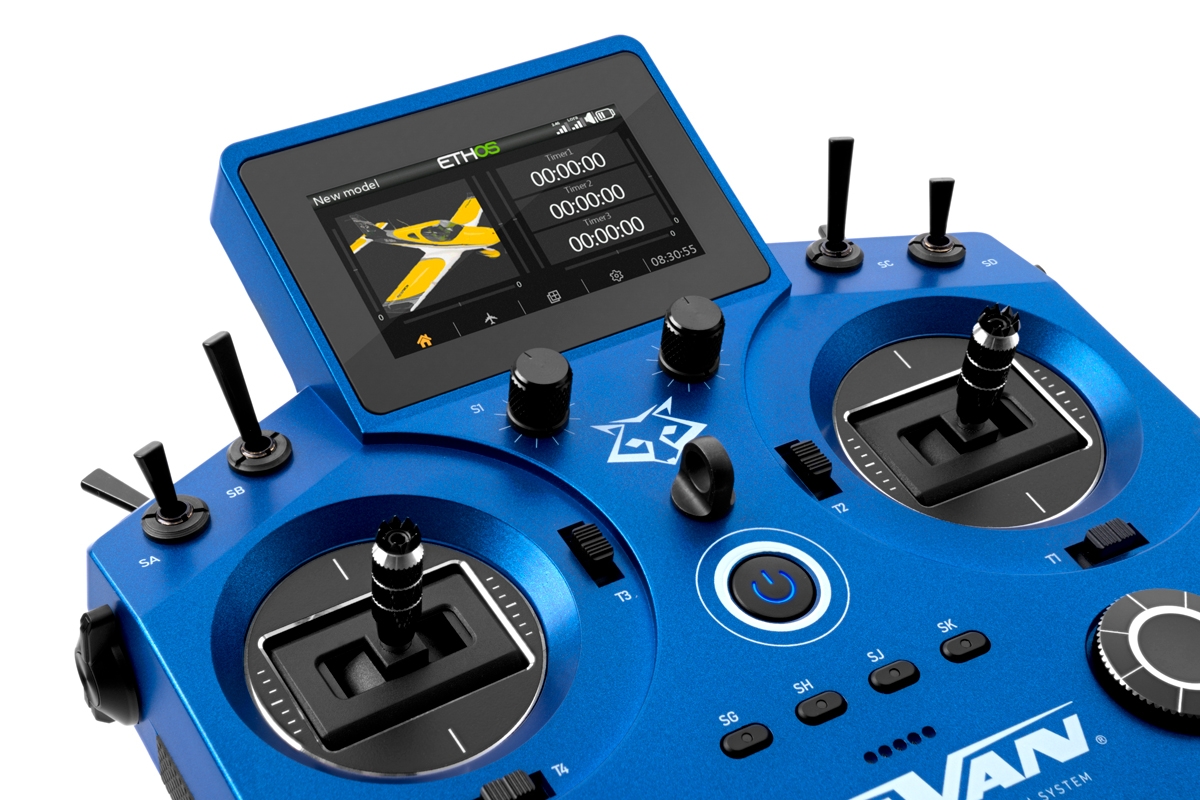

The V15 adopts the design and proven elements of the V20 transmitter, but is smaller, lighter and more portable. It is suitable for controlling a wide variety of aircraft models or heli/multi-copters. It is also easy to set up for ships or land models, for example. To do this, use the wide range of functions and mixes available in the ETHOS™ operating system. You can conveniently adjust these to your own preferences using the aluminium multifunction rotary knob and the ETHOS interface.

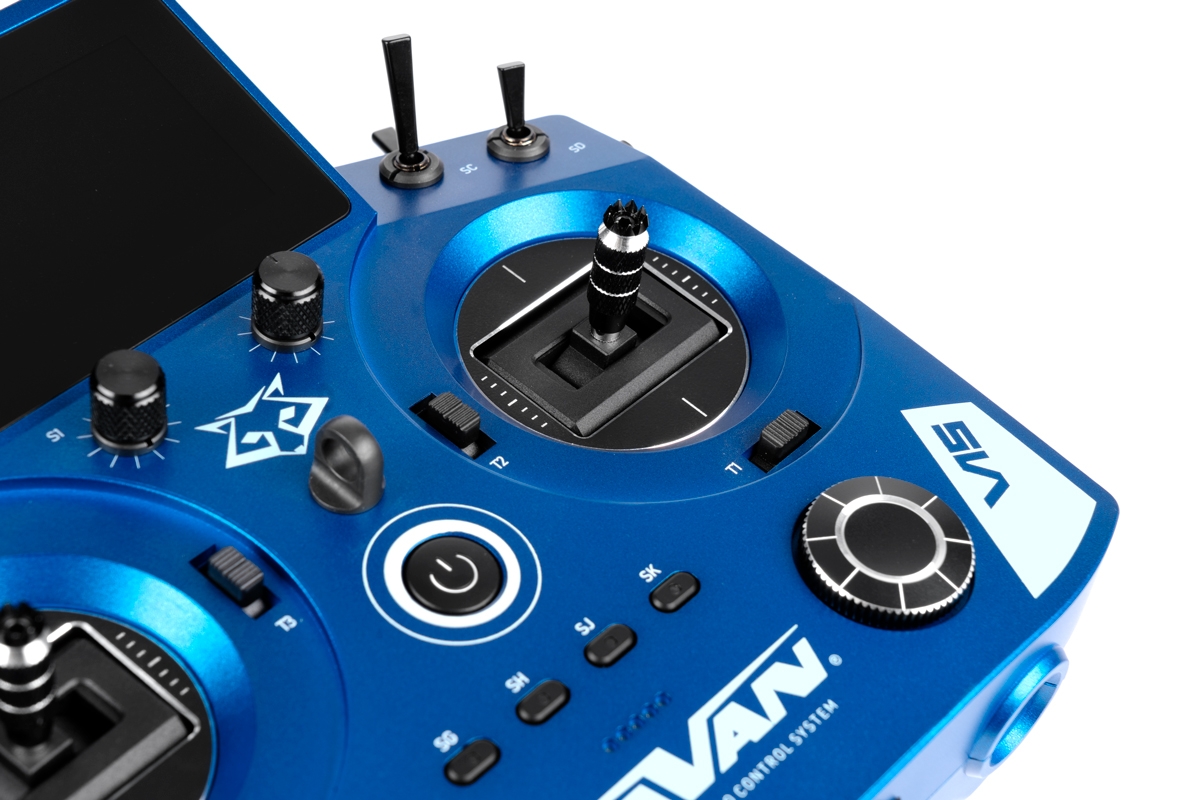

It features a pair of high-precision cross controllers with an aluminium plate. This ensures perfectly smooth movement of the sticks in every direction. Their position is sensed by high-quality Hall sensors. Compared to potentiometers, they have higher resolution and are not subject to mechanical wear and tear (most often around the centre position), and better withstand the effects of moisture and dust. The control is therefore more accurate and reliable.

To control other functions, there are 4 three-position switches, 2 two-position (1 momentary) switches, 2 rotary side dials, 4 user-programmable buttons (front) and 2 momentary buttons (rear), 2 programmable mixer rotary knobs, and 4 digital trims. Knobs are all-metal, precision CNC-machined. The controller layout and body ergonomics are based on the proven and extensively tested V20 transmitter design.

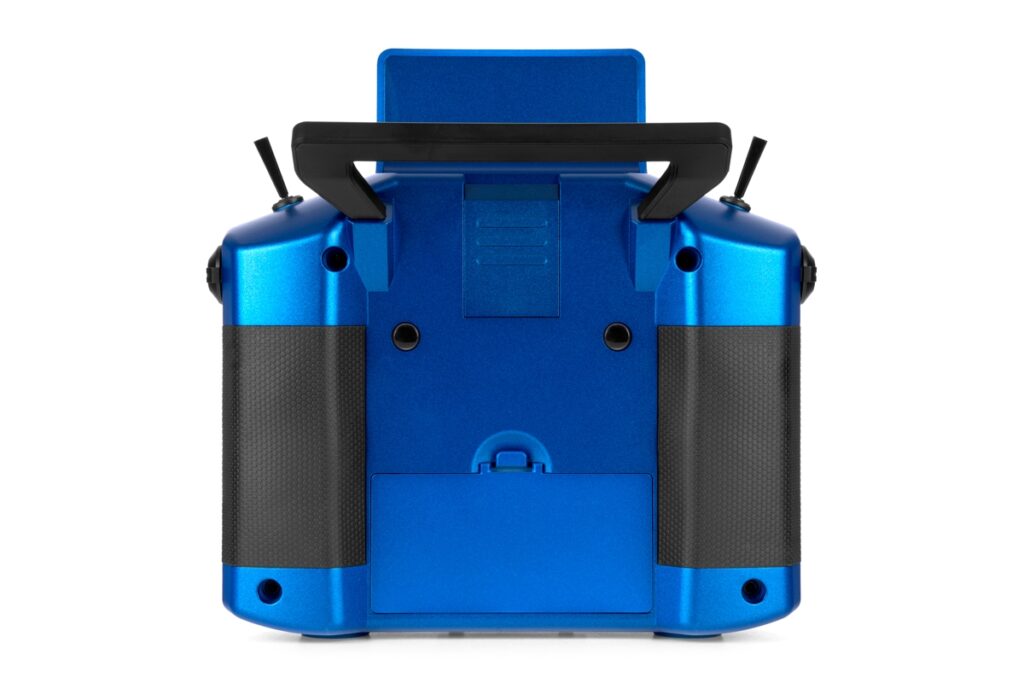

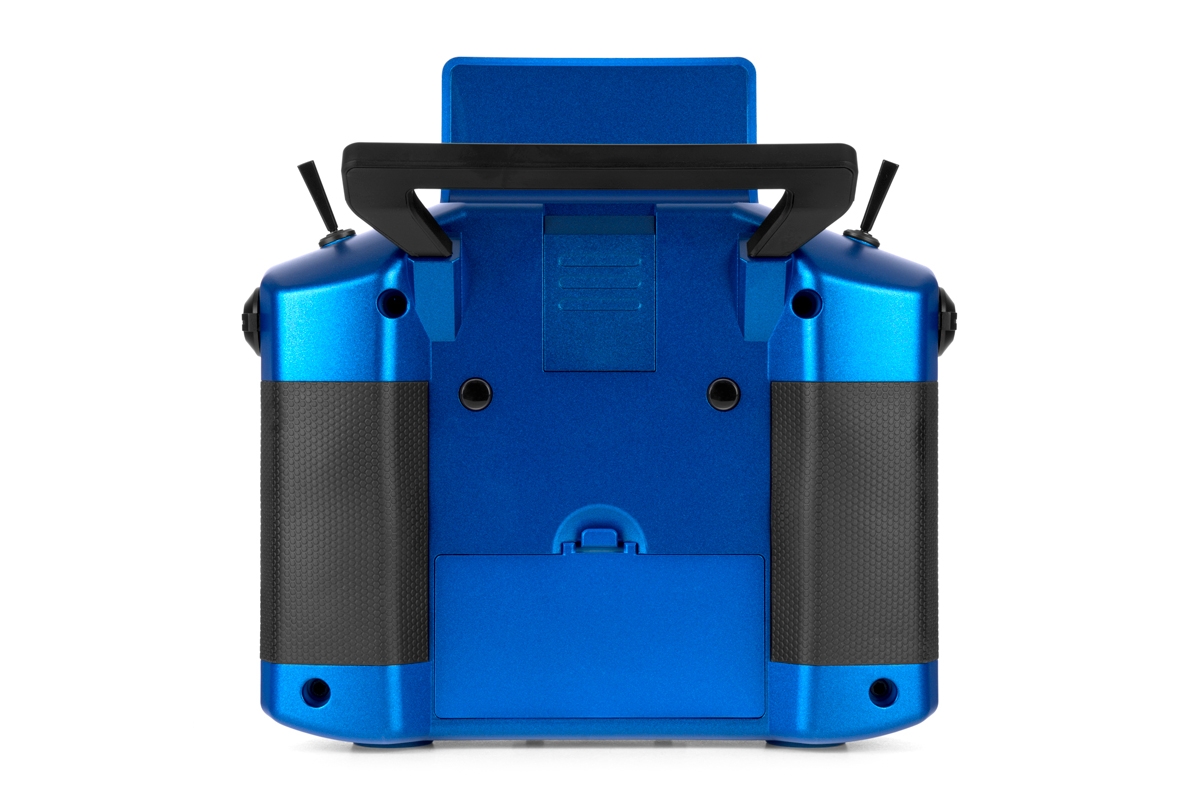

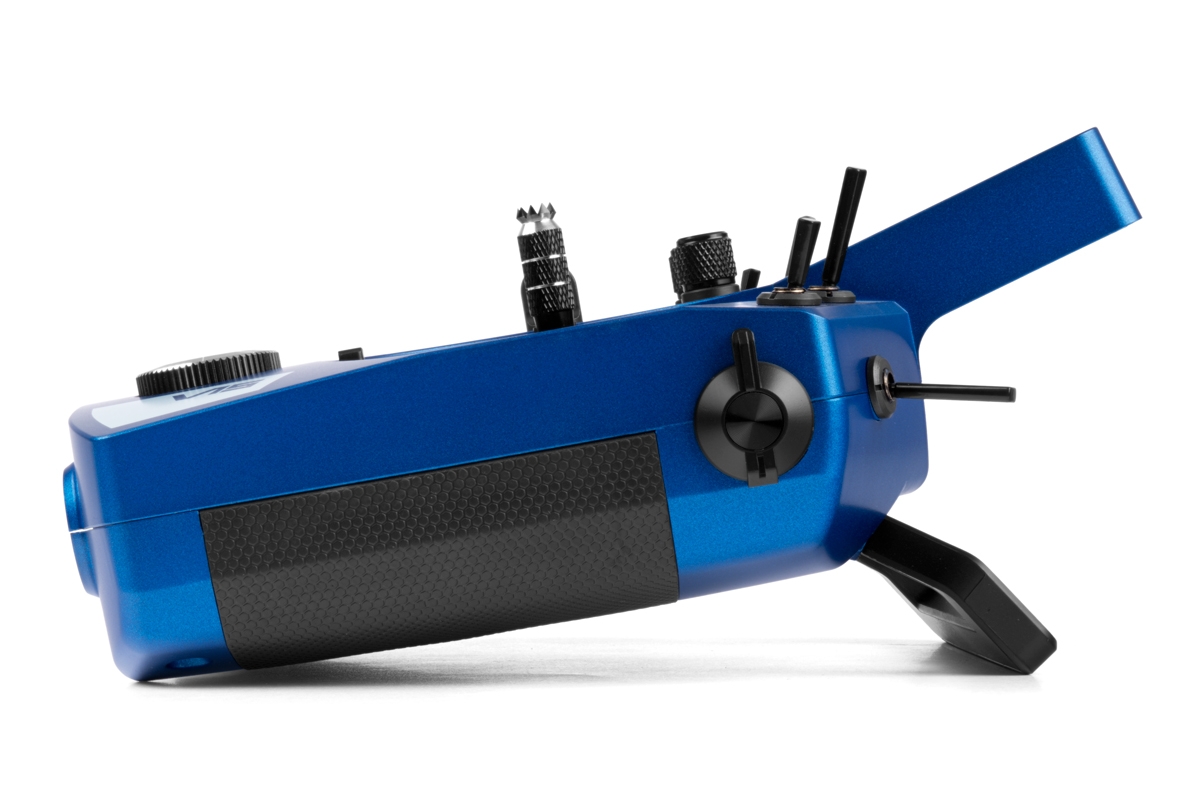

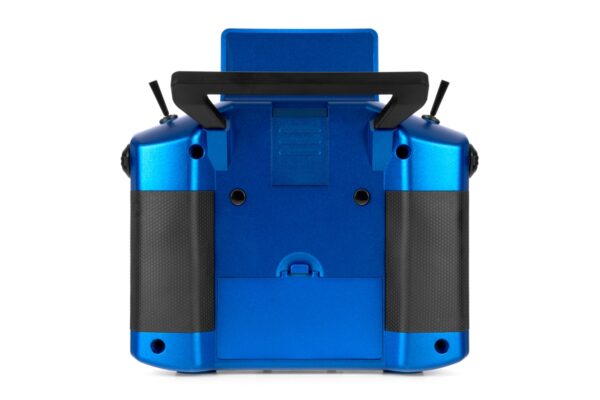

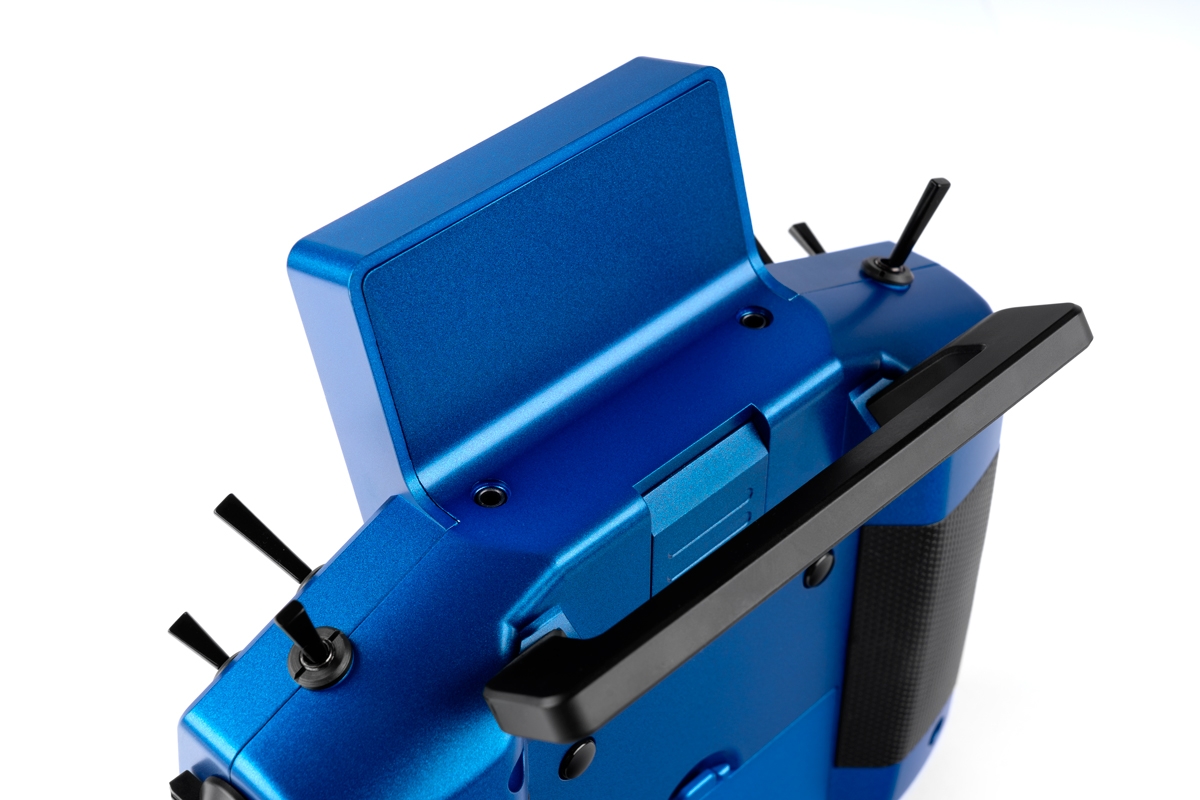

The transmitter body is robust and perfectly fits the hand. Rubber grips on the sides and back of the transmitter provide a firm, comfortable and secure grip. From here, you can reach all the controls without difficulty. The gimbals are located close to the edges of the transmitter. Of course, there is also the possibility to adjust the centring strength and ratcheting of the stick springs. So to change the mode, just select the desired mode in the settings menu, and in a few moments, adjust the throttle lever lock.

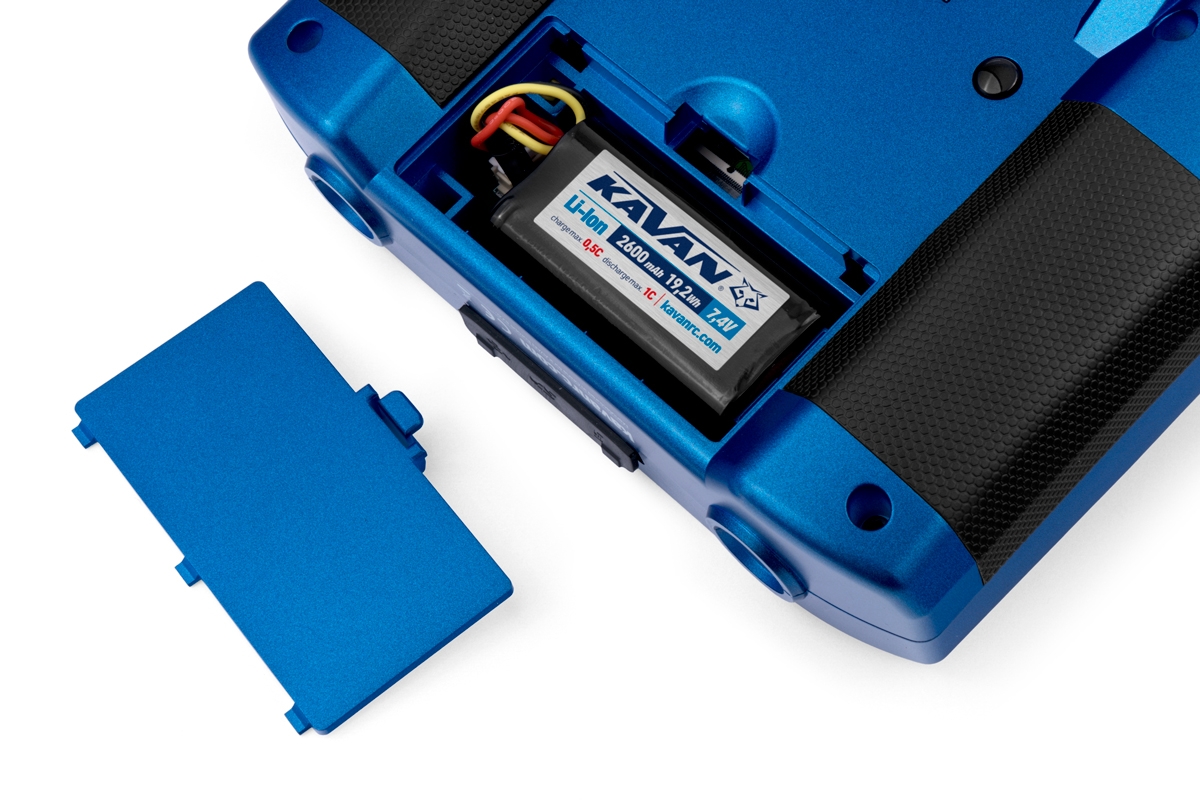

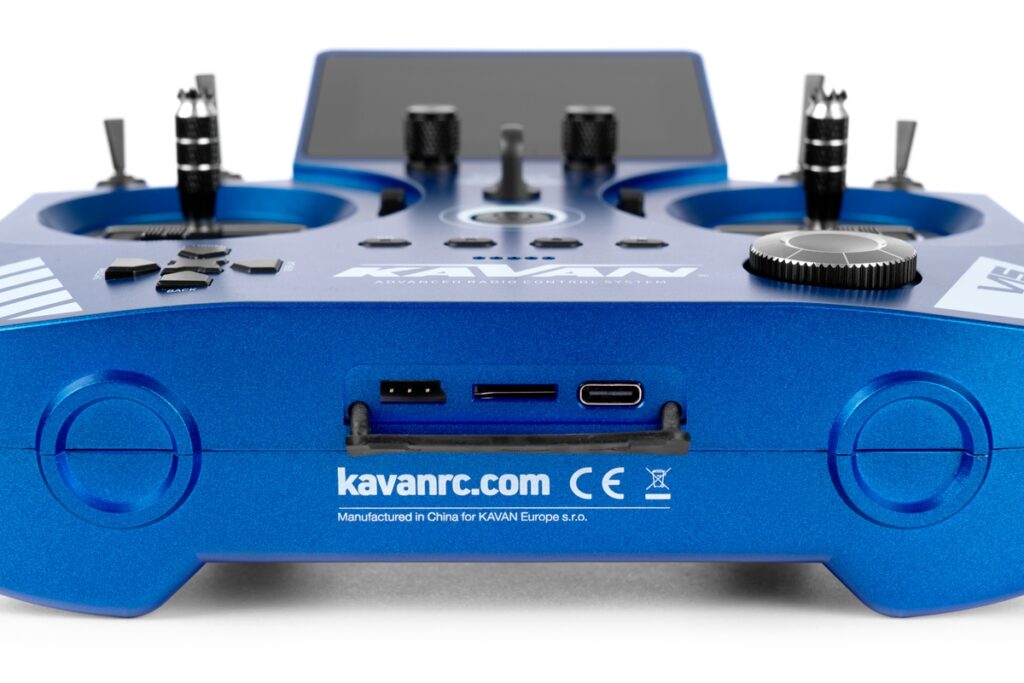

The built-in flash memory with a capacity of 128 MB stores all your models or scripts. If even this is too little, you can expand it with a MicroSD card. To access the memory, you use the USB-C connector, which also serves for charging. A built-in balancer will take care of your 2S lithium 2600mAh battery power.

All KAVAN transmitters are covered by a three-year extended warranty.

Features

• 2.95″ colour backlit TFT display with 640×360 px resolution

• Up to 20 flight modes for perfect control of your model in all conditions

• Full telemetry with data transfer from a wide range of sensors with the ability to write on a MicroSD card

• Memory for 64 models expandable via MicroSD card

• Voice telemetry output from the speaker or via cable with a 3.5mm Jack connector

• 4 three-position switches, 2 two-position (1 momentary) switches

• 2 rotary side dials, 2 momentary buttons on the rear

• 4 user-programmable buttons (front)

• Precision Hall-sensor gimbals with aluminium panel

• Trainer mode via cable or wirelessly via Bluetooth®

• Smart Port for programming servos

• Model names with 15 characters

• Subtrims

• Reversing the servo operation

• Setting end points and rate limiting

• Servo speed setting

• Resetting data

• Fail-safe emergency rates

• Dual rates

• Rate progression setting along 2 exponential curves or 21-point curves

• Freely programmable mixes

• Engine shutdown

• Safe idle

• Logically linked switches

• Intuitive user interface with customizable widgets

• Servo monitor and servo tester

• 3 timers (stopwatch or timer)

• Model run time

• Transmitter run time

• Indication of preset controller positions when the transmitter is started

• Adjustable display backlight intensity

• Calibration of gimbals

• Sound and haptic warning

• Range check

• 3 receiver operation mode setting (Redundancy)

Technical specifications

• Transmission system: 2.4GHz simultaneous on two frequencies (Twin 2.4GHz)

• Antenna: Two built-in 2.4GHz antennas

• Gain: 3.01 dBi

• Dimensions: 198.5×194.1×94.5 mm (W×H×D)

• Weight: 640 g (excluding battery)

• Operating system: ETHOS

• Internal RF module: TW-ISRM

• Channels: Up to 24

• Operating voltage: 6.5–8.4 V (2S Li-Po/Li-ion battery)

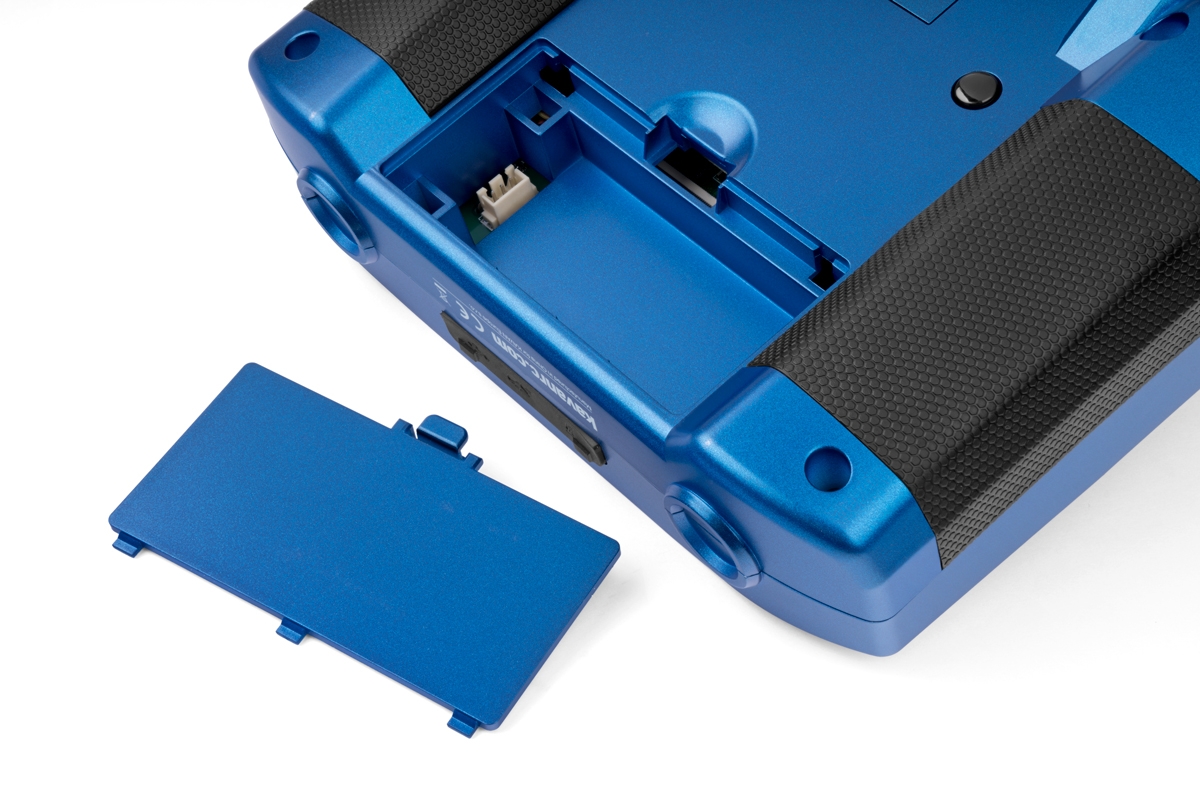

• Battery compartment dimensions: 69.5×38.5×20 mm (W×H×D)

• Operating temperature: (-10)–60 °C

• Operating current: 330 mA at 7.4 V

• Operating frequency: 2.4015–2.482 GHz

• RF output power: 17.77 dBm (E.I.R.P.)

• Charging current: ≤1 A ± 200 mA

• USB adapter voltage: 5 V + 0.2 V

• USB adapter current: ≥ 2.0 A

• Display: 2.95″ colour TFT with 640×360 px resolution

• Compatibility: Twin 2.4GHz / ACCST D16 / ACCESS

Set contents

• KAVAN V15 transmitter blue

• 2S Li-ion 2600mAh transmitter battery

Online manual

Interface language

• Chinese (Traditional)

• Czech

• German

• English

• Spanish

• French

• Hebrew

• Italian

• Dutch

• Norwegian

• Portuguese (Brazilian)

• Polish

• Portuguese

Audio language

• Chinese (Traditional)

• Czech

• German

• English

• Spanish

• French

• Hebrew

• Italian

• Dutch

• Norwegian

• Portuguese (Brazilian)

• Portuguese
