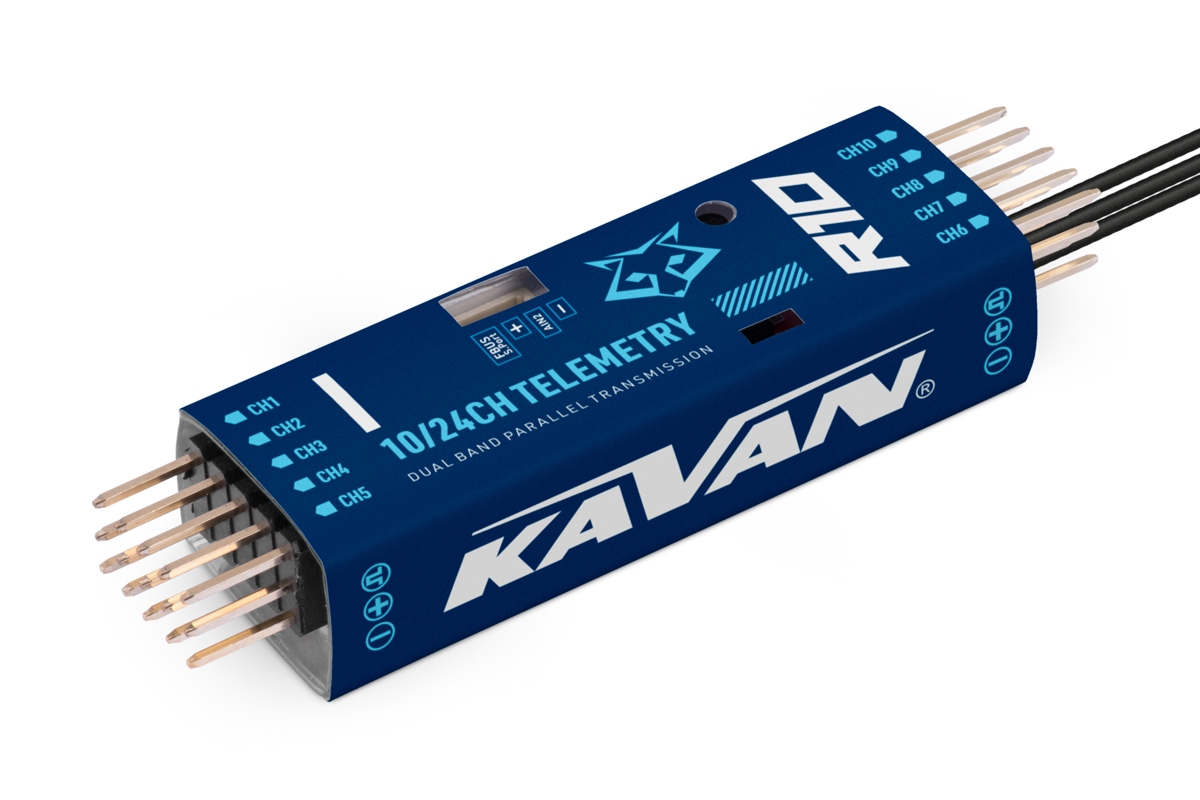

KAVAN R10 RECEIVER 2.4GHz

Advanced 10-channel telemetry receiver. It operates on a 2.4GHz simultaneous dual-frequency transmission system Twin 2.4GHz. It has 10 high-precision PWM channels and 16 or 24-channel modes using S.BUS. Two detachable antennas with IPEX4 connectors provide full signal strength over a range of up to tens of kilometres. It is especially ideal for gliders, but you can also use it for other various models. With redundancy support, it can be connected as a primary receiver via S.BUS. With the Twin 2.4GHz protocol, both receivers work fully simultaneously in this connection. Thanks to the F.BUS connection option, you can also pair it quickly and easily to several different telemetry devices, providing bidirectional data transmission via a single cable.

It features advanced interference suppression for reliable, stable signal transmission across the entire range. Smart transmission system matching speeds up pairing. The black box function stores essential flight data. Receiver operating statuses are indicated by an LED indicator. Smart pairing allows firmware updates wirelessly.

It is also available in a stabilised version (#KAV18.10010S R10 Stabi) offering ADV enhanced stabilisation features. The ADV stabiliser offers an advanced mode with multiple programmable stabilised channels and flexibility. The Stabi version is additionally equipped with a precise variometer for measuring basic telemetry.

Technical specifications:

• RF transmission: Twin 2.4 GHz

• Dimensions: 64×16.6×12.4 mm (L×W×H)

• Weight: 9.4 g

• Operating voltage: 3.5–12 V (recommended supply 2S LiXX)

• Operating current: ≤120 mA at 5 V

• External voltage measurement range via AIN2: 0–35 V

• Antenna connector: IPEX4

• Compatibility: Twin 2.4 GHz

• Max. radiated power: < 20 dBm

• Operating frequency: 2.400–2.4835 GHz

Functions:

• Increased protection against RF interference and more stable RF transmission

• Simultaneous dual-frequency Twin 2.4GHz transmission system with smart pairing

• Black box feature

• High maximum operating range

• Wireless firmware updates (OTA – OverTheAir)

• 10 configurable channels

• CH1: PWM / S.BUS OUT / FPort / S.Port / SBUS IN

• CH2–10: PWM / SBUS OUT / FBUS / S.Port

• F.BUS / S.Port

• SBUS OUT port (Supports 16/24CH mode)

• SBUS IN port (Supports signal redundancy)

All KAVAN receivers are covered by an extended 3-year warranty.
