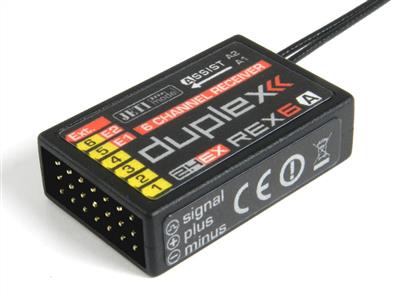

JETI DUPLEX REX 6 MOTTAKER 2.4EX

DUPLEX 2.4EX Empfänger REX 6

– internal memory for logging tel. and control signals
– up to 3 sensor with internal expander function

– Protocol support: PPM, EXBUS, EX,..
– programmable output pins
– supports commands
– compact dimensions
– 32 bit processor
– with high range
– programmed via JETIBOX and also wirelessly using Duplex DC/DS transmitters

techn. datas:

Weight [g]  11
Dimensions [mm]  38 x 25 x 11
Number of channels  6

Telemetry  Yes
Operational temperature [°C]  -10 … 85
Compatible protocols  DUPLEX 2.4GHz EX, EX Bus, UDI
Antenna Length [mm]  2 x 100
Supply Voltage [V]  3,2 – 8,4
Average Current [mA]  30
Satellite receiver support  No
Output Power [dBm]  15
Receiver Sensitivity [dBm]  -106
