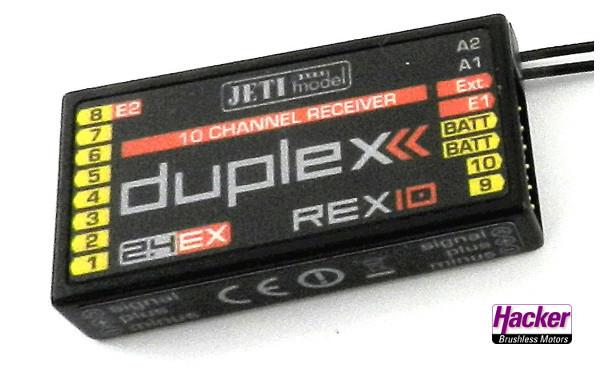

JETI DUPLEX REX 10 MOTTAKER 2.4EX

DUPLEX 2.4EX REX 10

– internal memory for logging tel. and control signals
– integrated to connect Expander up to 3 sensors
– Protocol support: PPM, EXBUS, EX, UDI
– programmable output pins
– supports commands
– compact dimensions
– 32 bit processor
– with a full range
– programmed via JETIBOX and also wirelessly using Duplex DC/DS transmitters

techn. datas:

Weight [g]  18
Dimensions [mm]  51 x 28 x 11

Number of channels  10
Telemetry  Yes
Operational temperature [°C]  -10 … 85
Compatible protocols  DUPLEX 2.4GHz EX, EX Bus, UDI
Antenna Length [mm]  2 x 200
Supply Voltage [V]  3,2 – 8,4
Average Current [mA]  30
Satellite receiver support  Yes

Output Power [dBm]  15
Receiver Sensitivity [dBm]  -106
