JETI DUPLEX R7 NANO MOTTAKER 2.4EX

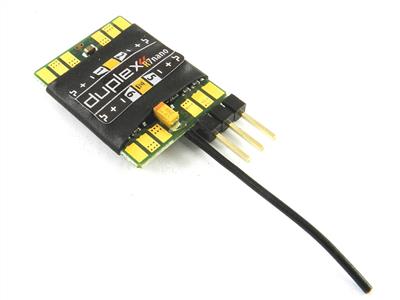

Receiver DUPLEX R7 nano  EX

Receiver DUPLEX R7 nano EX combines many servo outputs together with small dimensions. R7 nano EX is designed for easy use in small and light weight models. The receiver incorporates a single 32mm antenna.

R7 nano is the lightest receiver of the Duplex system, its weight is only 1 gram (2g in shrink tube). This Rx cames without any plugsystem for the servos, servo leads have to be soldered directly on the plate. That gives the minimum weight in your light weight model.

technical datas:
Weight [g]: 1 (2)
Dimensions [mm]: 30 x 18 x 5
Number of channels: 7
Telemetry: Yes
Operational temperature [°C]: -10 … 85
Compatible protocols: DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm]: 1 x 32
Supply Voltage [V]: 3,2 – 8,4
Average Current [mA]: 30
Satellite receiver support: No
Output Power [dBm]: 6
Receiver Sensitivity [dBm]: -98
