JETI DUPLEX CENTRAL BOX 100

Central Box 100

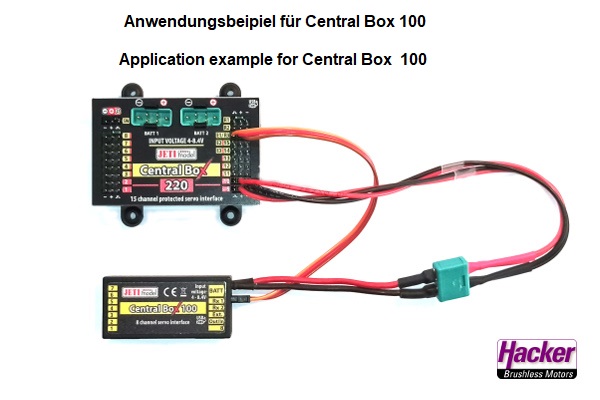

The Central Box 100 is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box has a unique design that provides overload protection at each servo output. The Central Box can manage a single battery and fully supports the JETI EX telemetry system. Up to two receivers with serial (PPM, EX Bus) output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.



Central Box 100 supports up to 8 protected servo outputs and a single battery input.

Attributes

– Overload protection on each channel

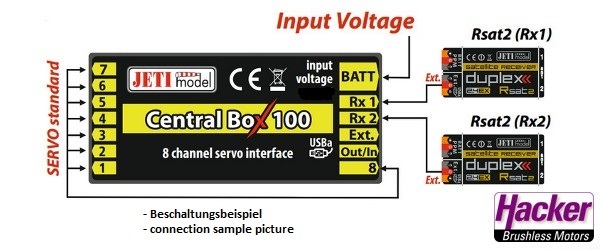

– Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus)
– Ext. connector for sensors
– MPX battery input connectors: 1x
– 100Hz mode of servo outputs (10ms period)
– Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, …)
– Easy settings changes via DC/DS transmitter
– Firmware updates by user (via JETI USBa Adapter)
– Suitable for use with high voltage (HV) servos
– Compact size for easy installation
– Each output is individually configurable (channel assignment, trim, reverse, A TV)

technical datas:

Weight [g]  20
Dimensions [mm]  52 x 25 x 11
Sustained current [A]  10
Number of channels  8
Telemetry  Yes
Operational temperature [°C]  -20 … 75
Compatible protocols  EX Bus, PPM
Supply Voltage [V]  4 … 14
Satellite receiver support  Yes
Batteries NiXX  4 … 10
Batteries LiXX  2 … 3
Number of battery inputs  1
Voltage stabilization  No
Peak current (2s) [A]  90
