JETI DUPLEX 2.4EX MAGNETIC SWITCH

The Magnetic switch is an electronic switch actuator for various JETI model products. A great advantage of the electronic switches in comparison to mechanical switches is generally higher reliability in terms of vibration resistance, virtually unlimited number of switching cycles. Electronic switches have no moving parts, such as contacts, etc., by their life and reliability is extremely high.

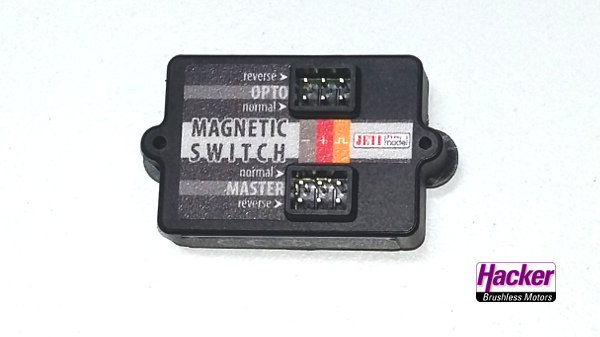

The Magnetic switch has 4 slots for the connection of three-wire patch cables with JR / UNI connector system. The slots are divided into two pairs, while a pair of slots is a optocoupler isolated. Each pair of slots has a non-inverted and an inverted output. This makes it possible to connect several devices simultaneously Jeti switch ON / OFF.

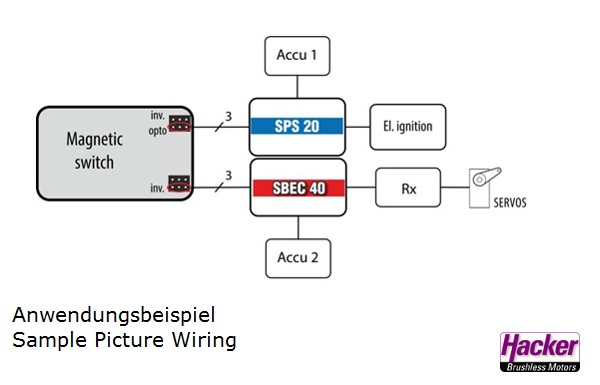

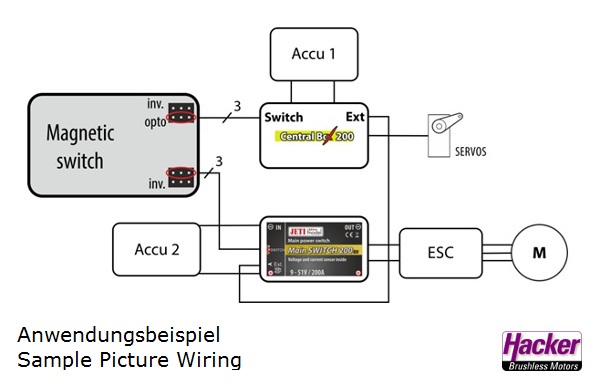

You can find the pictures also two examples.

Technical Specifications:
Recommended input voltage: 3.5 to 59 V
Power consumption in OFF state: 70uA @ 63V
Slots: 4
Temperature range: – 20 ° C to + 85 ° C
Weight: 11 g
Dimensions: 45×25,5×11 mm

suitable for the following JETI devices: Mainswitch, Central Box 200-400, SPS 20, DPS 40, Max BEC 2D+, S-BEC 40, DSM 10
