HOBBYWING PLATINUM PRO 120A 3-8S V5 ESC

Hobbywing HW30203402 – PLATINUM 120A V5 SBEC ESC

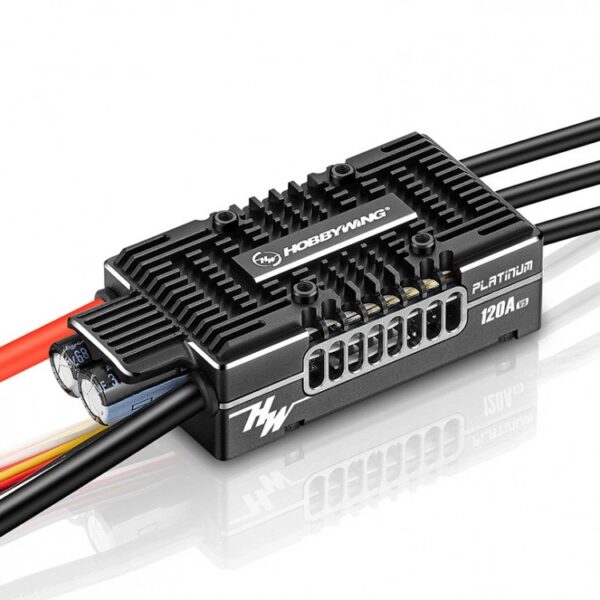

Compact size with efficient heat sink design

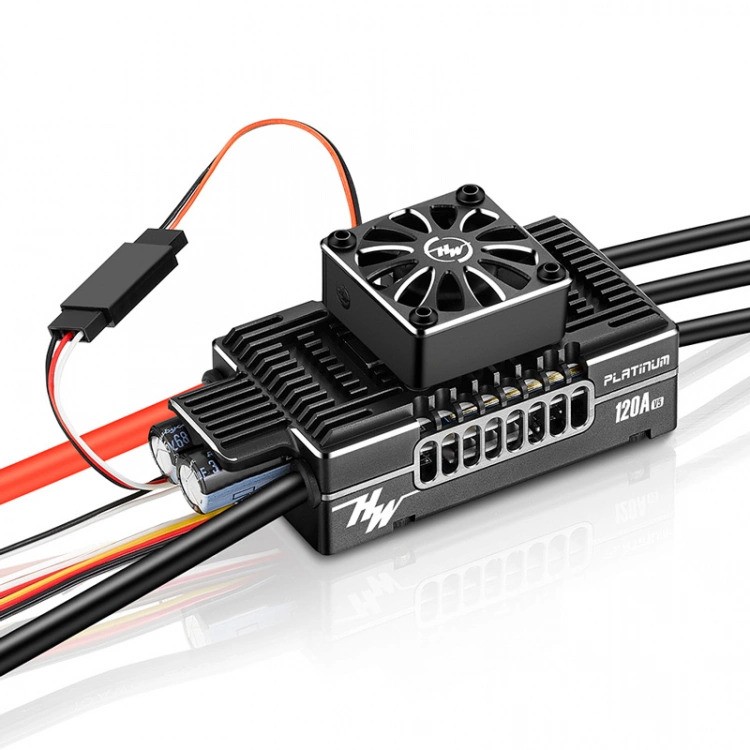

Continue to use the heat-dissipation structure of PLATINUM V5, The ESC is redesigned with a double-sided hollow heat dissipation structure as well as an addition side «window» design. The air is able to quickly pass through the inside of the ESC and take away the heat generated by the internal circuit board. This innovative air duct design is able to generate strong airflow on the entire ESC from the cooling fan. Overall, significantly improving the capability of heat dissipation.

Built-in 12V Switch BEC for greater output capability
The high-power BEC has added an anti-reverse circuit to use parallel with external batteries at the same time to provide double protection.

Constant speed performance upgrade, Ultimate flight experience
The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and more consistent, maximizing the RPM accuracy to enhance overall performance.

Compared with the previous ESC,The RPM accuracy algorithm makes the ESC more powerful and more consistent.The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits them personally.

Support multiple protocols
Mikado VBar System，Futaba S.BUS2 and other devices’ data return protocols. Users are able to adjust parameters on the remote-control device (VBar protocol support) or check the working status of the ESC at any time.

Synchronous rectification technology multiple advantages
The ESC has synchronous rectification driving efficiency optimization technology – DEO — DRIVING EFFICIENCY OPTIMIZATION which brings multiple advantages:

• Higher driving efficiency and longer battery life-span

• Faster throttle response, enhanced flight stability and flexibility

• Lower ESC temperature rise, more reliable

Multiple protection, double security
It has multiple protection functions, to effectively prolonging the lifespan of the ESC.

• Start-up protection

• Current protection

• Temperature protection

• Overload protection

• Throttle signal loss protection

• Input voltage abnormality protection

Specs:

• Cont./Peak Current: 120A/150A

• Input Voltage: 3-8S Lipo

• BEC Output Switch Mode: 5-12V & Cont. 10A，Peak 30A

• Input Wires: 10AWG-150mm

• Output Wires: 12AWG-100mm

• Input Connectors: No

• Output Connectors: 4mm Gold Connectors (Female)

• Firmware Upgrade: Supported

• Telemetry Function: Mikado VBar；Futaba S.Bus2；etc.

• Size:

• Weight:

• Applications: 420-520 class electric helicopters (main blade length 420-520mm) or fixed-wing aircrafts

ESC Programing via:

• Transmitter: Not Supported

• LED Program Card: Not Supported

• LED Program Box: Not Supported

• LCD Program Box: Supported

• OTA Programmer: Supported

• Program Port: Separate Program Port
