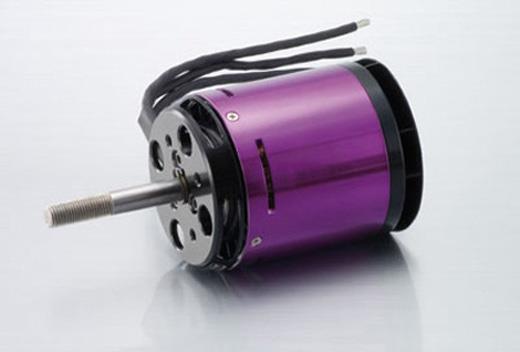

HACKER A60-16M

Specifications

max. power range [W] (max.15 sec.)

2200

Poles

14

Turns

16

Idle current (I0) at 37V [A]

1,9

Internal resistance (Ri) [Ohm]

0,022

Recommended timing [°]

20 – 25

Switching Frequency [kHz]

8

Controller recommendation [A] (depending on setup)

90 – 120

Idle speed per volt (kv)

215

Dimensions and weight

Weight [g]

760

Length [mm]/[in]

75,2

Outer diameter [mm]/[in]

59

Shaft diameter [mm]/[in]

8

Delivery contents

Prop Adapter

Ja

Mounting cross

Nein

Gold plug mm (recommended)

4 – 5,5

Backmount mountable

Nein

Front mountable

Ja
