FUTABA T26SZ PRO RADIO MED R7214SB FASSTEST

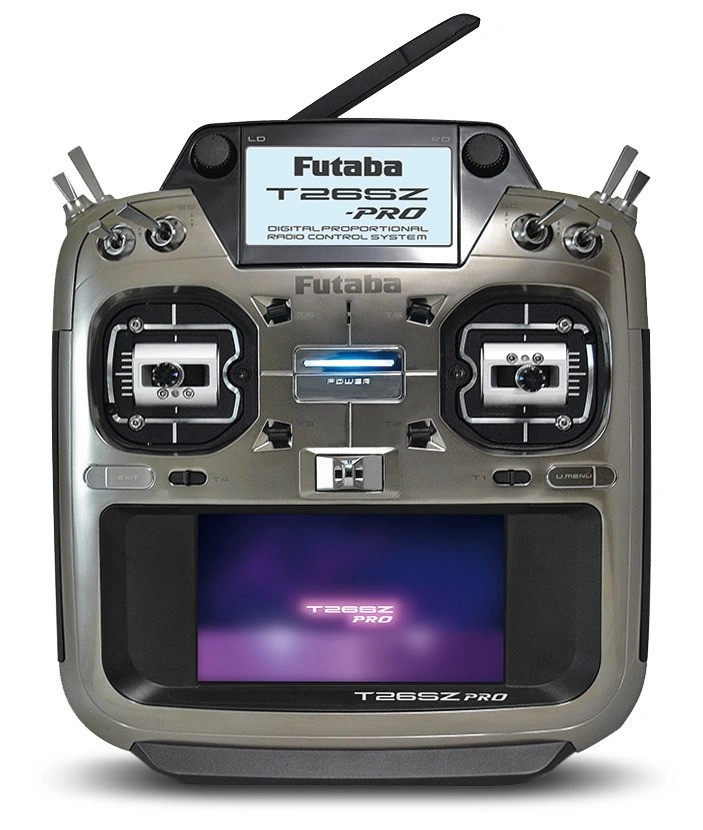

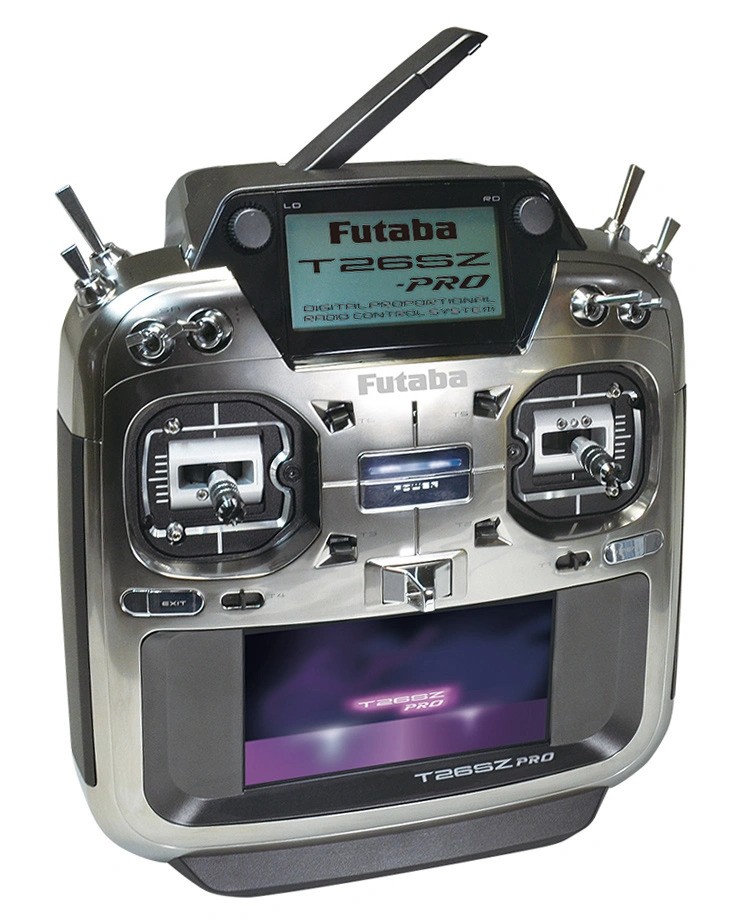

Futaba T26SZ-PRO – 26ch-2.4GHzFASSTest radio with R7214SB Receiver

The latest «PRO» model of the T26SZ is here!
Futaba’s high-end T32MZ series of aerial models is loved by many competition flyers. The T26SZ inherits that DNA and was born. Now equipped with a metal gimbal, the T26SZ is a high-end transmitter worthy of the «PRO» name.

T26SZ-PRO Unique Featuses vs the normal T26SZ:

• Stick material: Aluminium

• Stick lever head: Black anodized aluminum

• Stick angle adjuster: Vertical / Horizontal

• Front case: Brown Metalic Plating

• Shoulder case: Brown Metalic Plating

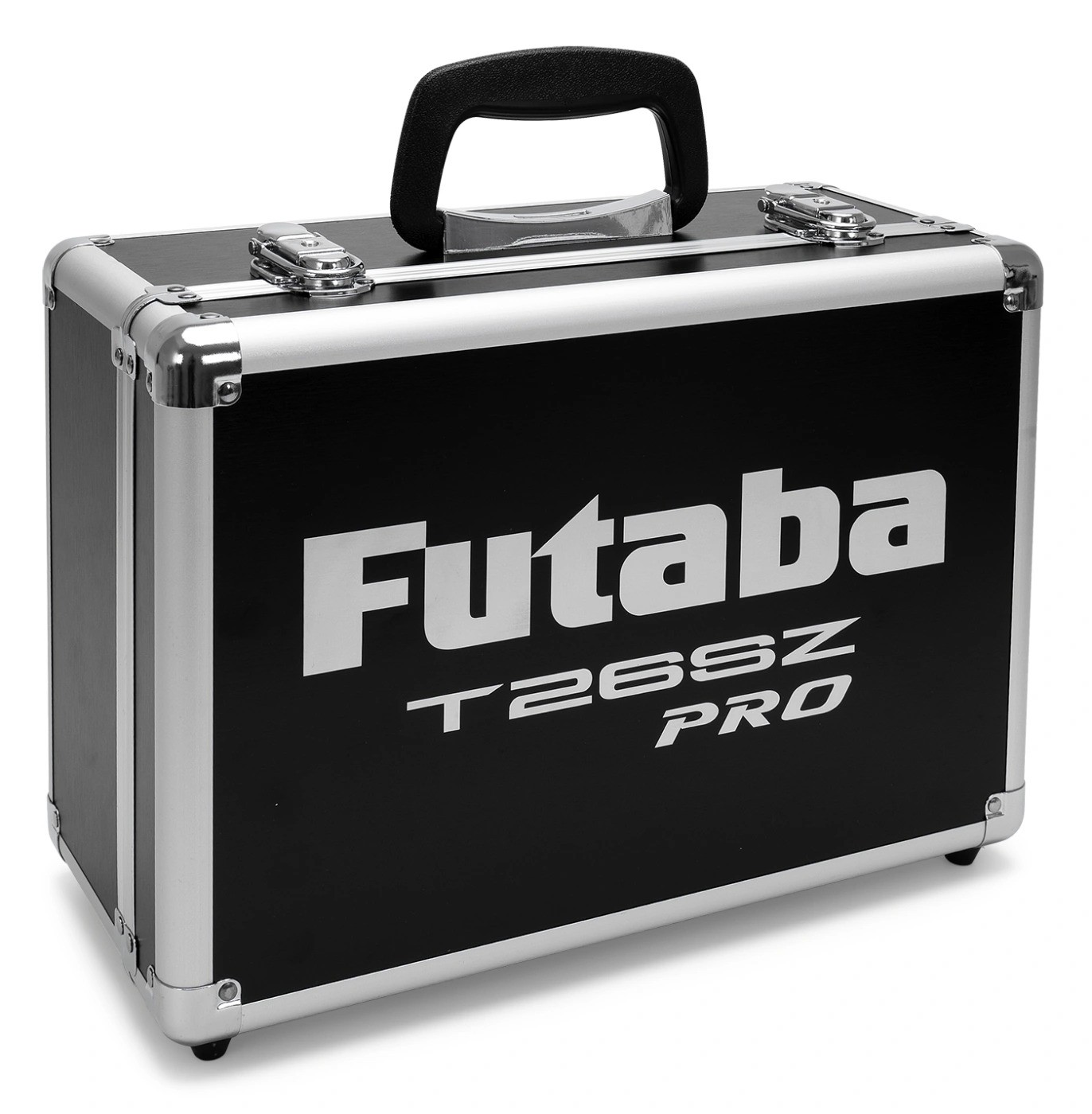

• Carrying case: Aluminum carrying case

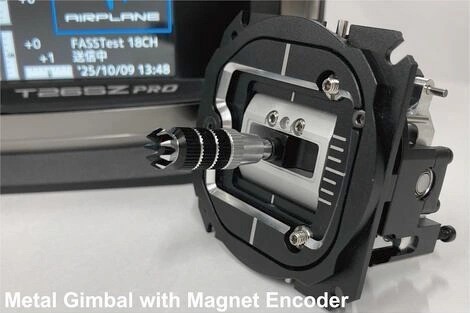

• Metal Gimbal (Metal Stick): Precision-machined aluminum and the inherent rigidity of the material deliver an unprecedented control feel.

• Mechanical stroke adjustment mechanism: Mechanical stroke adjustment is possible on both axes. The adjustment screws are located on the top surface, making it easy to set to the best position.
• Aluminum Lever Head: Black Anodized.

• Brown Metallic Front Case: The brown metallic front face creates a bold look.
• Brown Metallic Shoulder Case

For all other basic specifications, please see the T26SZ.

The T26SZ is positioned in between the highly desirable high-end T32MZ-WC series that is loved by many competitors and the mid-range T16IZ-Super. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba’s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like T32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the T26SZ is highly likely to tick every box on your extensive wish list. It is a masterpiece that is comparable to the high-end class, and can be said to be the result of Futaba’s many years of accumulated know-how and solid results.

S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

MAIN LCD COLOR DISPLAY
HVGA 4.3″ full color backlit LCD transflective (indoor / outdoor visible) touch screen.

SECONDARY LCD DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.

SD CARD PORT
Update software, store model data and upload picture files using the microSD port.

HIGH CAPACITY LI-PO
2100mAh offers a comfortable operating duration and real peace of mind.

INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.

MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

FEELS GOOD
Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralizing spring adjustment.

SWITCH REPLACEMENT
Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.

Features:

• The T26SZ-PRO transmitter is changable to either Mode-1 or Mode-2 in the software. See the manual for more info.

• FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols

• 26 channels (24+2)

• Full color 4.3 inch touch screen

• 3.0″ LCD sub display

• High quality finish

• Model image display

• Smooth non-contact stick potentiometer

• Shoulder switch upgrade / replacement

• Four rear sliders (paired)

• Vibration alert

• Voice function

• Telemetry system

• Four stick modes (1-4)

• MicroSD card software update

• High capacity LiPo

• USB-C charging

• Earphone jack

• Calendar clock

• S.BUS I/F enabled

• Wireless trainer system

• ±240 step sub trim

• Sub trim balance

• DLPH-2 settings

• Receiver mode-setting port

• Gyro setting for CGY755 / 760R / 770R / GYA553

• 8 flight conditions

• 30 pre-programmed mixers

• 10 free programmable mixers

• Retract and door sequencer

• 13 fixed-wing types

• 3 fixed-wing tail types

• 2 fixed-wing rudder types

• 8 helicopter swash types

• Supports 14 telemetry sensor types

• GPS enabled

Key Programming Features (for full list see manual):

• Model name (15 characters)

• Sub trim

• Sub trim balance

• Servo reverse

• Fail-safe

• Exponential

• Throttle cut

• End point / ATV (30 – 140%)

• Servo speed

• Trainer function

• Servo monitor

• Trim setting (step, rate, mode)

• Data editor (for S.Bus equipment)

• 10 programmable mixers

• 30 pre-programmed mixers

• Aileron differential

• Air brake

• Flap trim

• Flap setting

• Butterfly

• Camber mix

• Camber flap-elevator

• Elevator to camber

• Aileron to camber flap

• Aileron to rudder

• V tail

• Ailvator

• Winglet

• Aileron to brake flap

• Snap roll

• Servo monitor

• Twin timers

• Stick alarm

• Battery fail-safe

• Gyro sense

• Multi engine

• Motor mix

• Condition name

• AFR (dual rate)

• AFR (curve mode)

• AFR curve point number (17 points)

• Logic switch (condition switch only)

• Acceleration mixing

• Pitch curve / pitch trim

• Throttle curve / throttle hover trim

• Pitch to needle mix

• Revolution mix

• Swash ring

• Idle down

• Throttle limiter

• Swash setting

• Swash AFR

• System timer

• Function setting

• Governor

Telemetry functions:

• Temperature

• RPM (magnetic & optic)

• Altitude

• GPS

• Voltage

• Receiver battery

• Current

• Data logging

What’s in the Box:

• T26SZ-PRO 26-channel transmitter

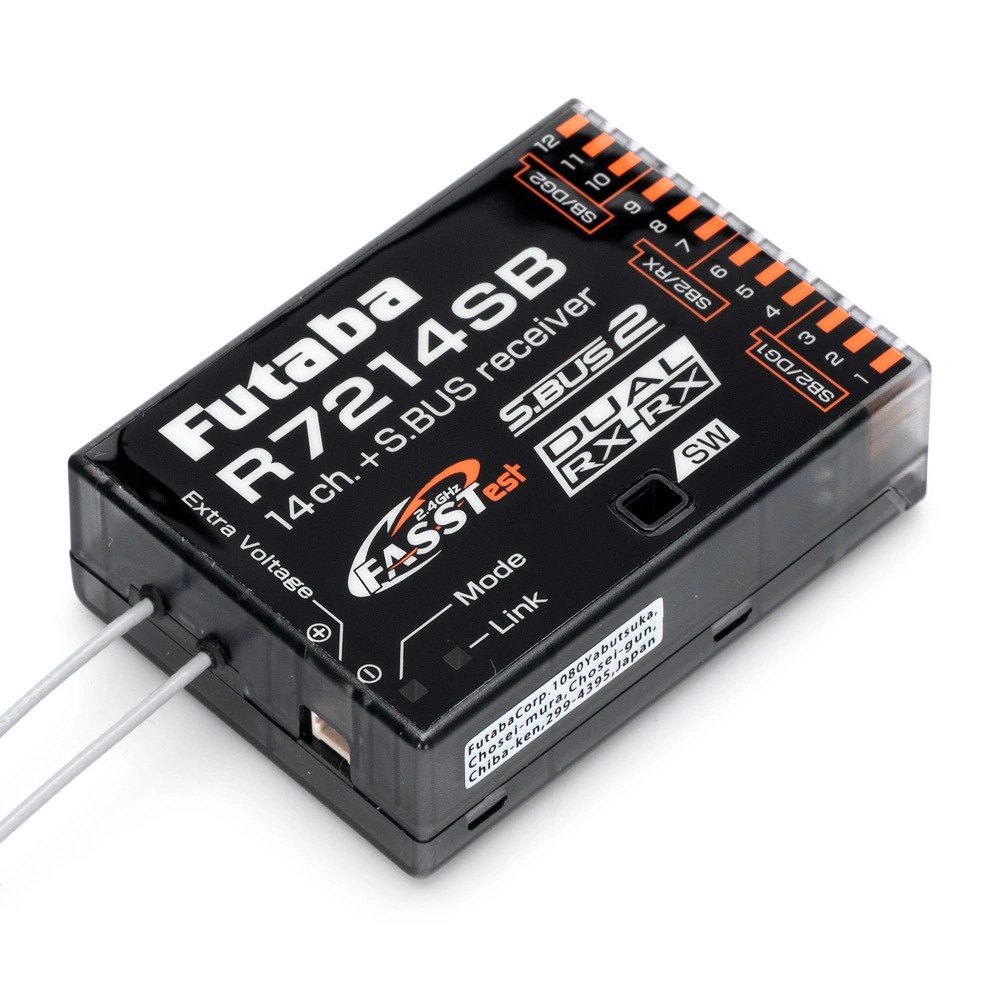

• R7214SB receiver

• 7.4V 2000mAh Li-Po Tx battery pack

• Aluminium carry case

• USB-C charge lead

• Neck strap

• Tool set

• Short manual (full pdf manual as download)
