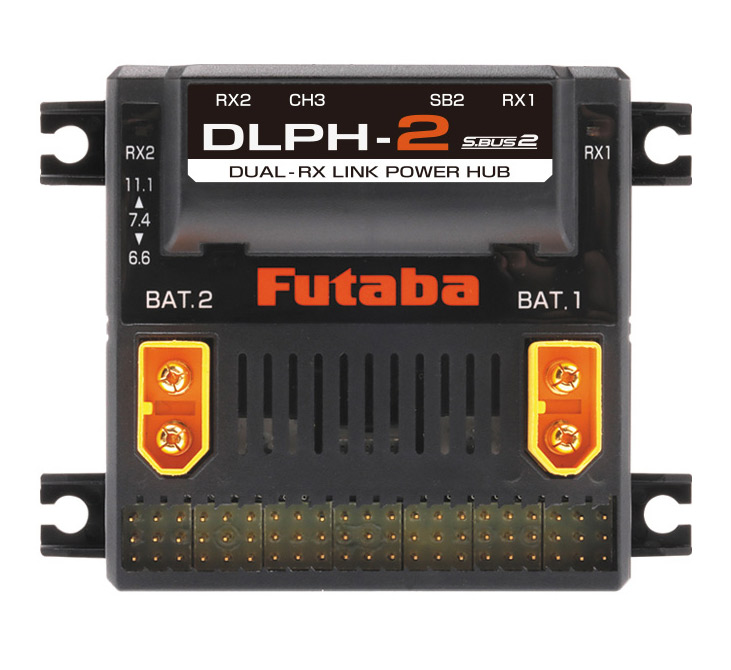

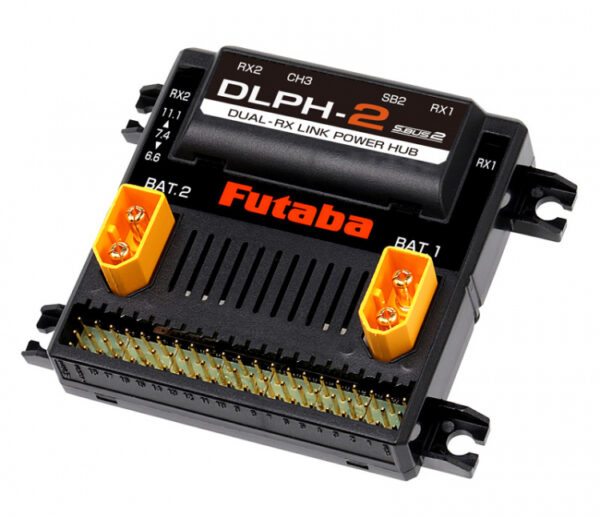

FUTABA DUAL-LINK S.BUS DECODER DLPH-2

Futaba DLPH-2 – Dual RX Link Power Hub

Equipped with 2 MAX60A systems! Dual RX link power hub. Ideal for aircraft that use many servos, such as large machines! Introducing support for single receiver mode, gyro mode, and FASSTest 26ch!

Features:

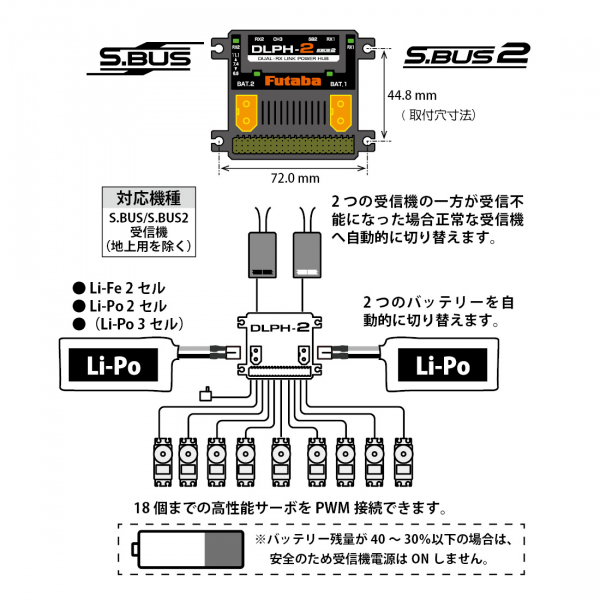

• Two receivers and batteries can be connected.

• Electronic switch (current is controlled by FET circuit)

• The telemetry function allows you to display the voltage of 2 power supplies.

• Compatible with 3 types of batteries and equipped with a protection function when connecting different types of batteries

• Equipped with a protection function when the battery level is low.

The following functions have been added from DLPH-1:

• Single receiver mode

• Airplane gyro GYA553 connection mode

• FASSTest 26ch compatible

• Various settings can be made visually by using a transmitter (32MZ WC, etc.)

DLPH-2 specifications:

• Application: 2 receiver switching equipment (dual Rx link system)

• FET (rating): 60A at all times x 2 pieces

• Size: 62.8×62.4×18.1mm

• Weight: 50g

• Operating voltage: 6.4 to 13.0 V (2 batteries (XT60 connector))

• Accessories: Switch/receiver, gyro connection cord x 3/mini driver/flange damper/grommets/wood screws
