FES EX-UNI6 SYSTEM 2-BLADE 23MM

FES Ex-Uni6 System 2-Blade 23mm

Product description and features

A very easy to remove propeller adapter transforms your Scaleglider in seconds from the electric model to a pure glider and back. Slight pressure on the Propadapter lock pin allows you to pull off the propadapter unit. The model is still a pure glider with the option for self-launch. Adaptable to various engines and models.

• Easy installation without sawing the nose and thus maintaining the original look and the resale value

• The FES Ex-Uni6 shaft adapter does not protrude through the fuselage tip – not visible from the outside when the propeller is removed

• Aerodynamically negligible – small prop adapter, closely fitting propeller blades

• Safety for pilot, helper and spectator

• Can be attached and removed from the outside within seconds without tools

• Released propellers can be safely stowed away (e. g. in the fuselage or in the pocket)

• This FES Ex-Uni6 system is also known as FES Ex mini.

• In the locking device, a pull line can be clicked to the model to the starting point and retreat.

• Made in Germany by Torcman

Specifications

• maximal motor power: 1,2kW

• maximal RPM: 15000 rpm

• Diameter snap-on sleeve in front: 10mm

• Diameter ball bearing front: 30mm

• for motor shaft with 6mm

• Propadapter wide: 23mm

• Weight: 58g

Delivery contents

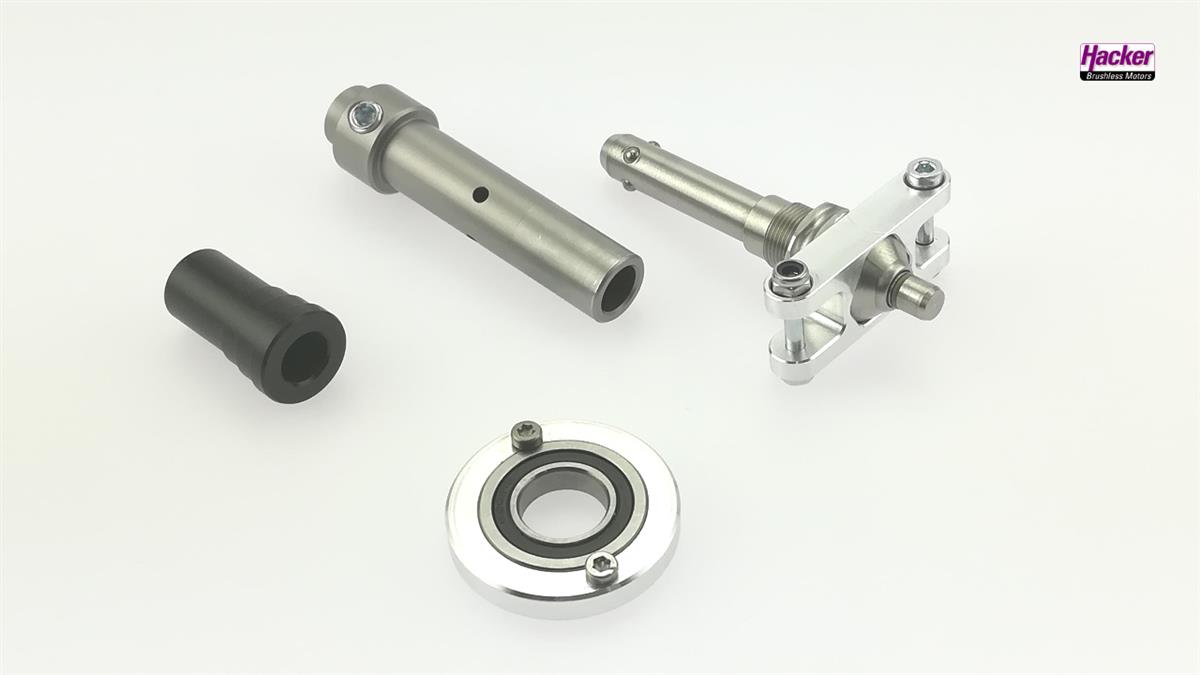

Set contains: Locking sleeve, ball locking bolt with prop adapter, frontframe incl. ballbearing, mounting sleeve
