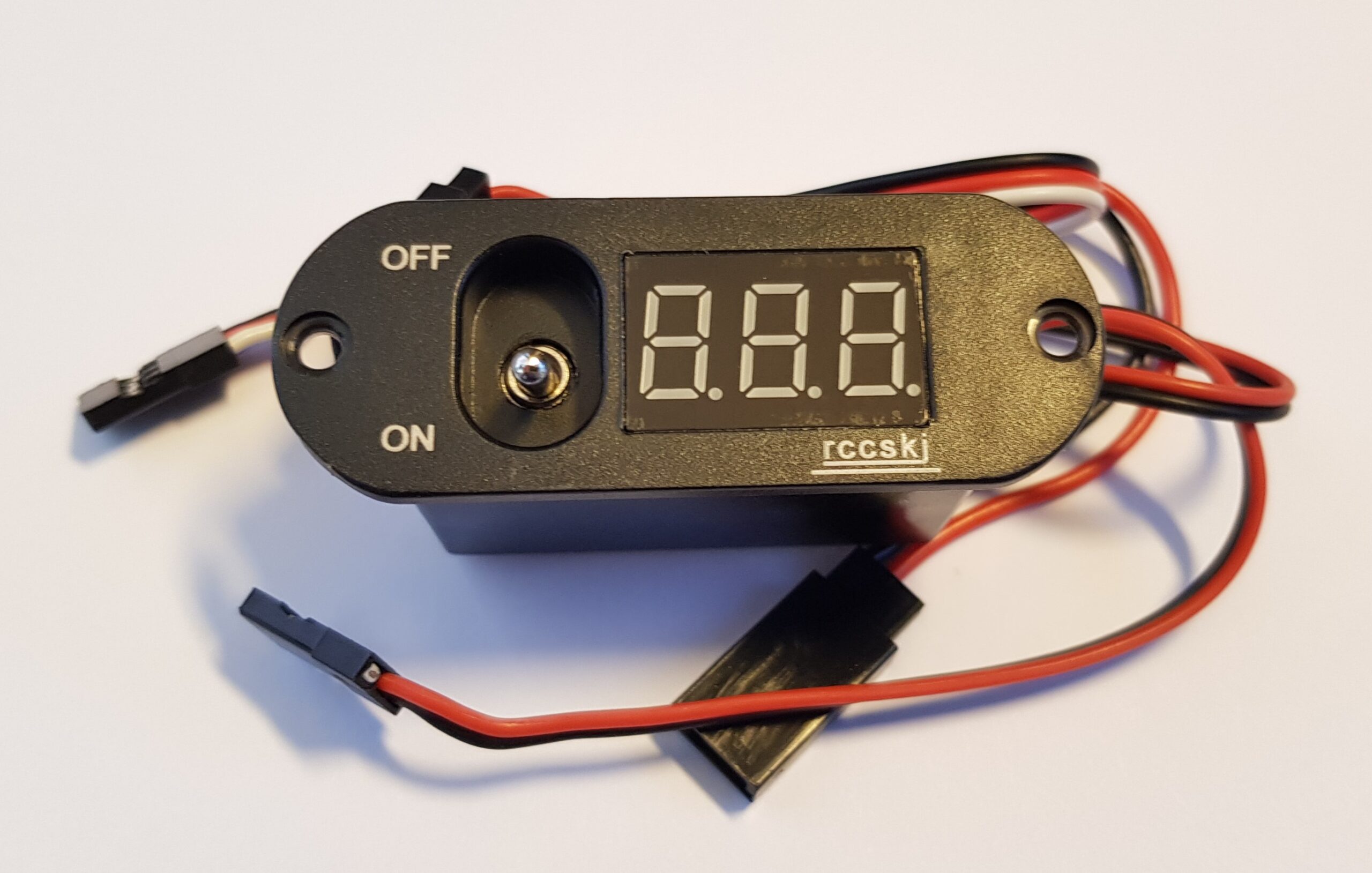

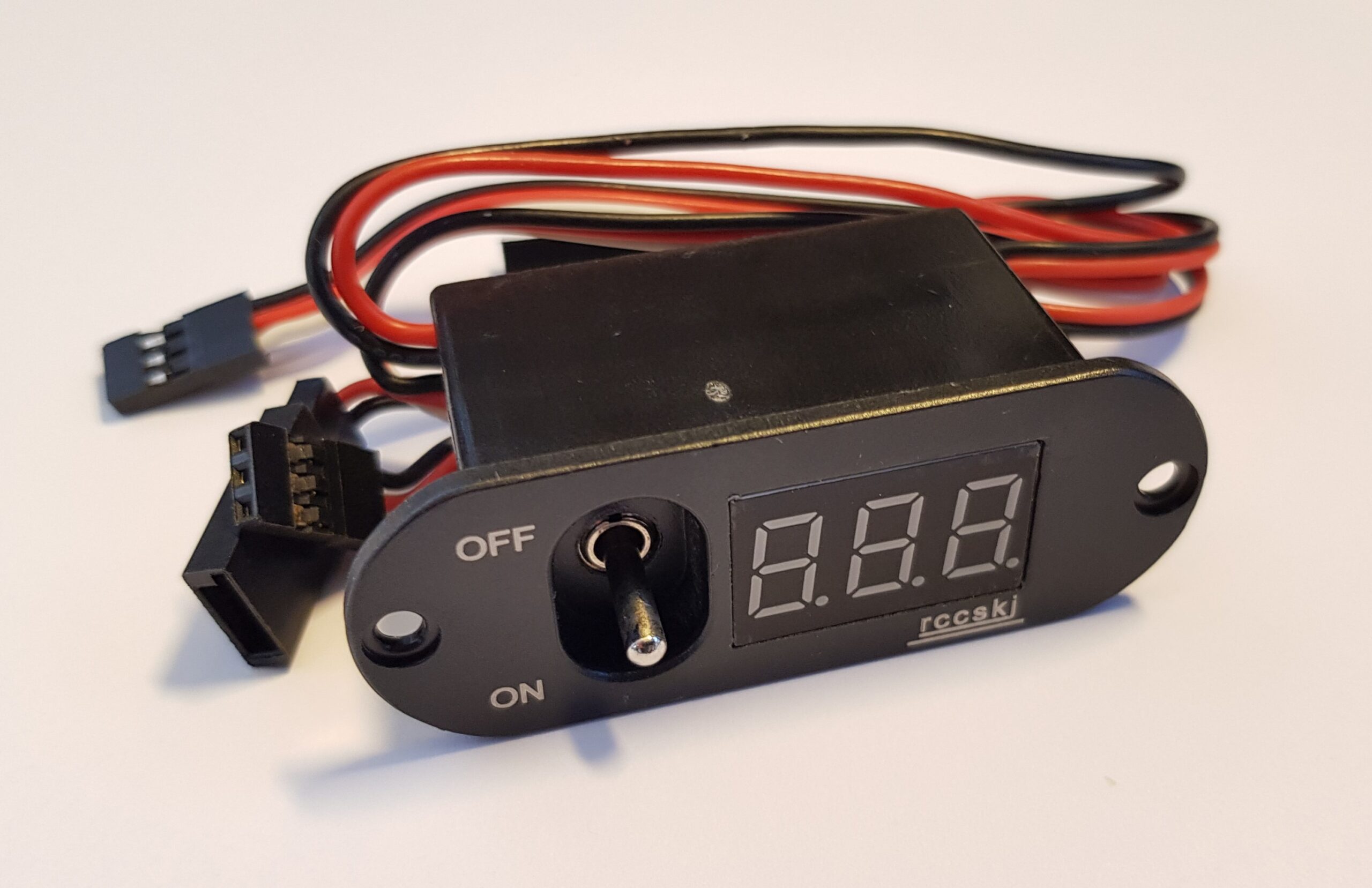

3 IN ONE KILL SWITCH IGNITION CDI / VOLTMETER DIGITAL

The built-in nitro ignition is used for RC planes, RC cars and RC boats nitro engine.

No need for CDI battery because the CDI can be connected to receiver battery directly and can ignite by controlling the fifth channel on the remote control.

Build-in large current switch and digital display (Real-time display battery voltage).

You can use switch channel of radio to control ignition.(Channel 5 is generally used to control the ignition)

Specifications:

• CDI Working Voltage: 4.2-13V

• CDI Output Voltage: 1.5V

• Voltage Display Range (Nixie tube): 3.5-15V

• Max. Current (switch): 15A

• Max. Current (ignition): 5A

• Input Wire: 24# silicone wire, L15cm

• Output Wire: 60 cores, L25cm

• Plug Type: FUTABA/ JR compatible

• CDI Wire: 24# silicone wire, L40cm

• Weight (include cable): 60g

• Size： 40mm (L)*22mm (W)*34mm (H)

Note:

• Battery polarity mustn’t be reversed.

• Don’t touch grease and water and near corrosive materials when installing.

• Please use low resistance and large-capacity battery as possible, because of the need of relatively large working current when starting CDI.

• Please turn off CDI after the engine started, and avoid shortening the life even burn because of Spark plug long powering.
